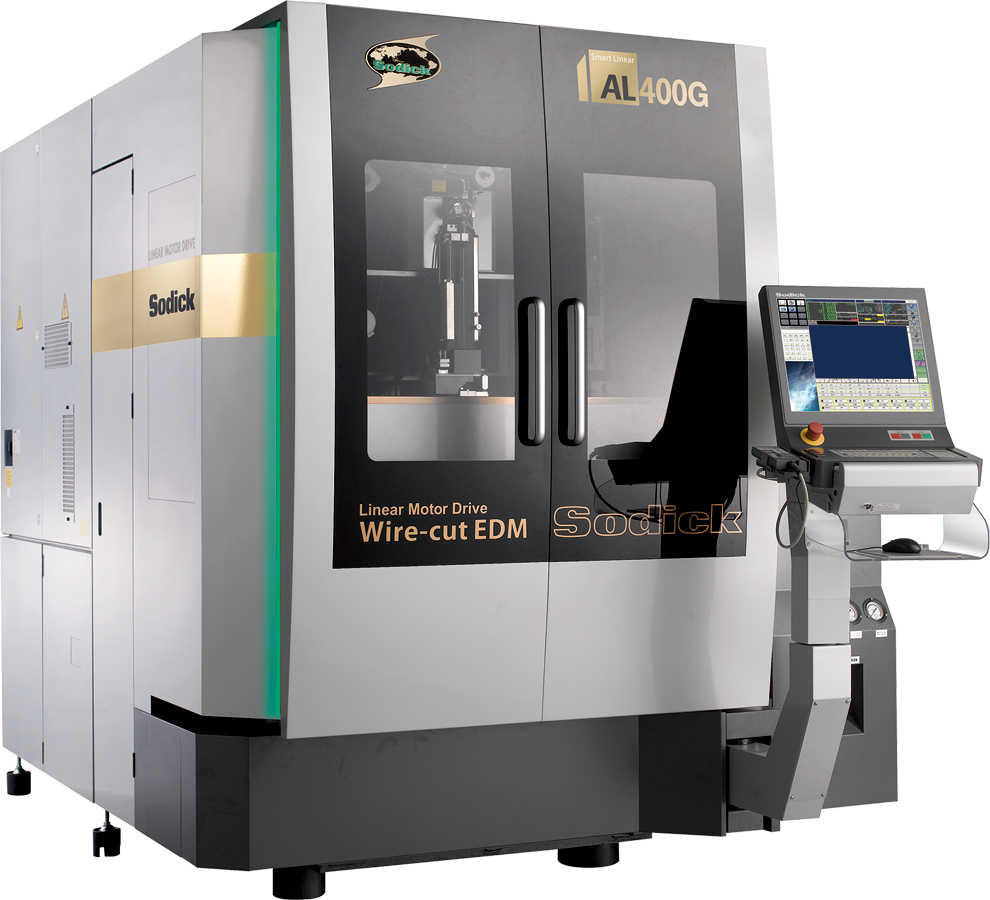

AL400G/AL600G
Linear Motor Drive /High speed & High Performance Wire-cut EDM
Achieving the superlative performance with in-house developed core technologies
Main Features
4-axis linear motor drive
Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor.
New Power Supply Unit & New Machining Circuit
Has a 19-inch horizontal type touch panel, realizing the most up-to-date man-machine interface and also ensuring ease of viewing and ease of use. This machine is standardly equipped with the "barrel-free effect control II" which greatly reduces the barrel amount during machining, and "TMP Control II" which improves the surface roughness of the second cut and realizes high speed finish machining.
Improves Operability and productivity
The operability is improved with the standardly equipped ceramic work stand, square shaped table, automatic three sides up and down type processing tank and Z-axis following automatic liquid level control function. The high speed automatic wire connection unit (FJ-AWT) and the intermediate liquid level control function enables unattended high precision machining can be performed, which improves productivity.
product Specifications
| Technical Specifications | ||
|---|---|---|
| AL400G | AL600G | |
| X - Axis Travel (mm) | 400 | 600 |
| Y - Axis Travel (mm) | 300 | 400 |
| Z - Axis Travel (mm) | 250 | 350 |
| U x V axis Travel (mm) | 150 x 150 | |
| Work tank inner dimensions W x D (mm) |
850 x 610 | 1050 x 710 |
| Max. taper angle | ±25°(plate thickness：130mm) | |
| Max. workpiece dimensions W x D x H (mm) |
600 x 470 x 240 (submerged) |
800 x 570 x 340 (submerged) |
| 800 x 570 x 280(flushing) | ||
| Max. workpiece weight (kg) | 500(350submerged) | 1000 |
| Wire electrode diameter (mm) | 0.1 - 0.3 | |
| Wire tension (N) | 3 ～ 23 | |
| Maximum wire feed rate (mm/sec) | 420 | |
| Distance from floor surface to upper surface of table (mm) |
995 | |
| Machine tool dimensions W x D x H (mm) |
2115 x 2500 x 2230 | 2495 x 2895 x 2345 |
| Machine installation dimensions W x D (mm) |
3350 x 3850 | 3780 x 4245 |
| Total unit weight（kg) | 3400 | 4600 |
| Total power input | 3-phase 50/60Hz 13 kVA | |

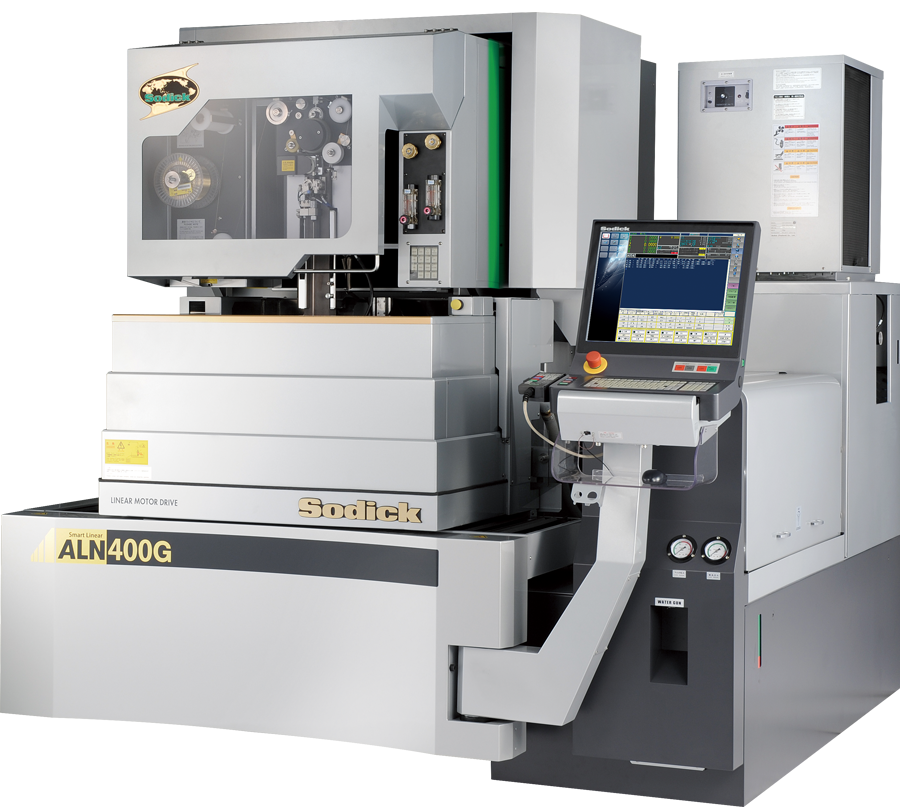

ALN400G/ALN600G
Linear Motor Drive /High speed & High Performance Wire-cut EDM
Achieving the superlative performance with in-house developed core technologies
Main Features
4-axis linear motor drive
Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor.
New Power Supply Unit & New Machining Circuit
HHas a 19-inch horizontal type touch panel, realizing the most up-to-date man-machine interface and also ensuring ease of viewing and ease of use. This machine is standardly equipped with the "barrel-free effect control II" which greatly reduces the barrel amount during machining, and "TMP Control II" which improves the surface roughness of the second cut and realizes high speed finish machining.
Improves Operability and productivity
The operability is improved with the standardly equipped ceramic work stand, square shaped table, automatic three sides up and down type processing tank and Z-axis following automatic liquid level control function. The high speed automatic wire connection unit (FJ-AWT) and the intermediate liquid level control function enables unattended high precision machining can be performed, which improves productivity.
product Specifications
| Technical Specifications | ||
|---|---|---|
| ALN400G | ALN600G | |
| X - Axis Travel (mm) | 400 | 600 |
| Y - Axis Travel (mm) | 300 | 400 |
| Z - Axis Travel (mm) | 250 | 350 |
| U x V axis Travel (mm) | 150 x 150 | |
| Work tank inner dimensions W x D (mm) |
850 x 610 | 1050 x 710 |
| Max. taper angle | ±25°(plate thickness：130mm) | |
| Max. workpiece dimensions W x D x H (mm) |
600 x 470 x 240 (submerged) |
800 x 570 x 340 (submerged) |
| 800 x 570 x 280(flushing) | ||
| Max. workpiece weight (kg) | 500(350submerged) | 1000 |
| Wire electrode diameter (mm) | 0.1 - 0.3 | |
| Wire tension (N) | 3 ～ 23 | |
| Maximum wire feed rate (mm/sec) | 420 | |
| Distance from floor surface to upper surface of table (mm) |
995 | |
| Machine tool dimensions W x D x H (mm) |
2115 x 2335 x 2185 | 2445 x 2685 x 2296 |
| Machine installation dimensions W x D (mm) |
3365 x 3660 | 3695 x 4060 |
| Total unit weight（kg) | 3200 | 4300 |
| Total power input | 3-phase 50/60Hz 13 kVA | |

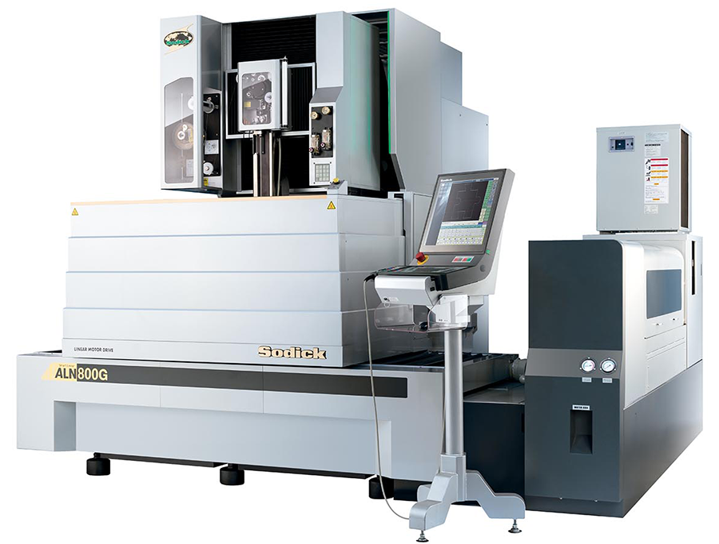

ALN800G
Linear Motor Drive /High Speed & High Performance/Large-size Wire-cut EDM
Achieving the superlative performance
Main Features
4-axis linear motor drive
Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor.
New Power Supply Unit & New Machining Circuit
Has a 19-inch horizontal type touch panel, realizing the most up-to-date man-machine interface and also ensuring ease of viewing and ease of use. This machine is standardly equipped with the "barrel-free effect control II" which greatly reduces the barrel amount during machining, and "TMP Control II" which improves the surface roughness of the second cut and realizes high speed finish machining.
Large and Thick Workpiece Machining
The AL800G/ALN800G supports a 500mm workpiece thcickness machining standard. It equipped with the automatic vertically sliding door, the "O-shape" work-stand, and ceramics made stand-bases. The high speed automatic wire threading unit (FJ-AWT) and the built-in 20kg wire feeder enables unattended high speed and high precision machining.
product Specifications
| Technical Specifications | |
|---|---|
| ALN800G | |
| X - Axis Travel (mm) | 800 |
| Y - Axis Travel (mm) | 600 |
| Z - Axis Travel (mm) | 500 |
| U x V axis Travel (mm) | 200 x 200 |
| Max. workpiece dimensions（During flushing machining） W x D x H (mm) | 1250 x 1020 x 500 |
| Max. taper angle | ±25°(plate thickness：130mm) |
| Max. workpiece weight （During flushing machining) (kg) | 3000 |
| Wire electrode diameter (mm) | 0.1 - 0.3 |
| Wire tension (N) | 3 ～ 23 |
| Maximum wire feed rate (mm/sec) | 420 |
| Distance from floor surface to upper surface of table (mm) | 995 |
| Machine tool dimensions W x D x H (mm) | 3310 x 3360 x 2695 |
| Machine installation dimensions W x D (mm) | 4590 x 4760 |
| Total unit weight（kg） | 5500 |
| Total power input | 3-phase 50/60Hz 13 kVA |

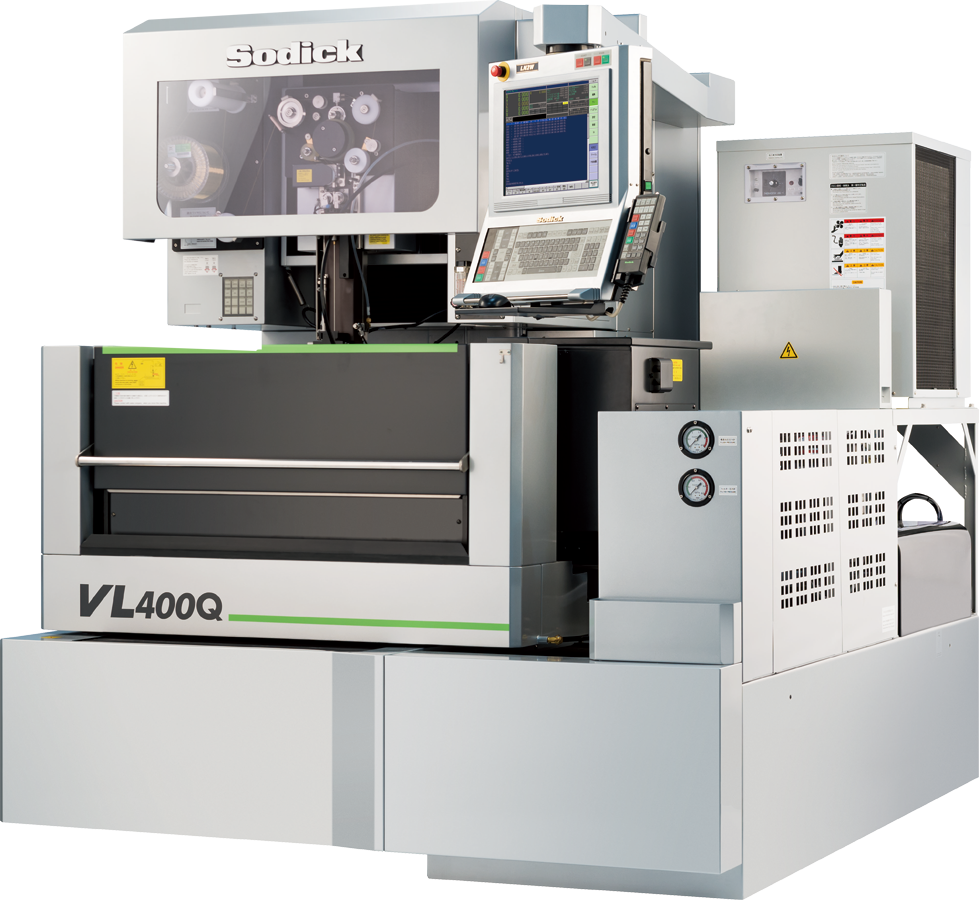

VL400Q/VL600Q
Linear Motor Drive /High Speed Wire-cut EDM
Precision parts machining for Medical, Aerospace and Cutting tools The most reliable linear motor driven Wire-cut EDM Improved surface finish supports variety of machining needs.
Main Features
No screw drive system
The no screw drive system, which uses a linear motor and linear scale, is the ideal drive method which maintains high-speed and high response semi-permanently. The initial positioning accuracy can be maintained for years and years; machine operators will everlastingly enjoy the remarkably reliable machining performance.New power supply unit.
New Power Supply Unit
The new power supply unit employs "Perfect Active Control" technology. It realizes high-speed processing of discharge control and motion control simultaneously. The "Heart-NC", automatic programming system, is installed standard which allows machining program procedure without experience.
Versatility
The VL series are equipped with many advantageous functions as standard; such as, the advanced corner control system, automatic float control, new high quality surface finish circuit, and more. Moreover, Sodick’s in-house made superior ceramics are adopted standard for precision machining.
product Specifications
| Technical Specifications | ||
|---|---|---|
| VL400Q | VL600Q | |
| X - Axis Travel (mm) | 400 | 600 |
| Y - Axis Travel (mm) | 300 | 400 |
| Z - Axis Travel (mm) | 220 | 270 |
| U x V axis Travel (mm) | 80 x 80 | |
| Work tank inner dimensions W x D (mm) |
860 x 690 | 1040 x 780 |
| Max. taper angle | ±15°(plate thickness：130mm) | |
| Max. workpiece dimensions W x D x H (mm) |
830 x 610 x 200 (submerged) |
990 x 670 x 265 (submerged) |
| 830 x 610 x 215 (flushing) |
990 x 670 x 250 (flushing) |
|
| Max. workpiece weight (kg) | 500(350submerged) | 850 |
| Wire electrode diameter (mm) | 0.1 - 0.3 | |
| Wire tension (N) | 3 ～ 23 | |
| Maximum wire feed rate (mm/sec) | 420 | |
| Distance from floor surface to upper surface of table (mm) |
900 | 930 |
| Machine tool dimensions W x D x H (mm) |
2020 x 2310 x 1990 | 2620 x 2605 x 2080 |
| Machine installation dimensions W x D (mm) |
2700 x 3080 | 3300 x 3395 |
| Total unit weight（kg) | 2700 | 3040 |
| Total power input | 3-phase 50/60Hz 11 kVA | |

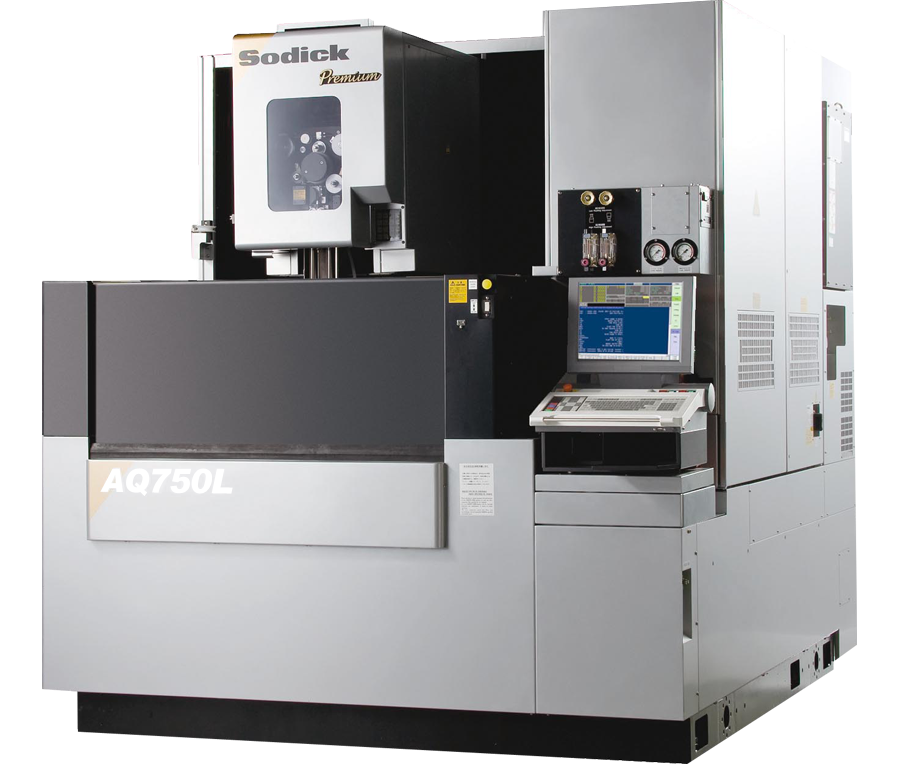

AQ750L/AQ900L
Linear Motor Drive Large-Capacity /High Speed Wire-Cut EDM
Direct-drive system, new power supply unit, wire feeder, automatic wire threader, and L-Cut Wire Chopper enables continuous automatic machine operation.
Main Features
Direct-drive & Integrated structure
Sodick's direct-drive system uses linear motors and linear scales, and its excellent positioning accuracy never diminishes over time. The machine also employs a unique integrated structure design, offering the world's best-in-class installation space and machining area size.
Equipped with LP power supply
Significant improvement in operability by employing newly designed, operator-friendly keyboard and remote control. In addition, “Intelligent Q3vic EDW” comes standard, allowing operators to directly send 3D models into the NC unit for practical operation on the work floor.
Ultra-high speed AWT
The Super Jet AWT (Ultra-high speed Automatic Wire Threader unit) uses the conventional pipe-jet method combined with wire annealing function, greatly expanding the range of wire connection modes to choose from and meets the needs of various applications.
product Specifications
| Technical Specifications | ||
|---|---|---|
| AQ750L | AQ900L | |
| X - Axis Travel (mm) | 750 | 900 |
| Y - Axis Travel (mm) | 500 | 600 |
| Z - Axis Travel (mm) | 400 | 400 |
| U x V axis Travel (mm) | 770 x 520 | 920 x 620 |
| Work tank inner dimensions W x D (mm) |
1264 x 973 | 1374 x 1133 |
| Max. taper angle | ±30°(plate thickness：150mm) | |
| Max. workpiece dimensions W x D x H (mm) |
1050 x 750 x 400 | 1200 x 900 x 400 |
| Max. weight of workpiece (During flushing machining)（kg） |
1500 | 2000 |
| Wire electrode diameter (mm) | 0.15 - 0.33 | |
| Wire tension (N) | 3 ～ 23 | |
| Maximum wire feed rate (mm/sec) | 420 | |
| Distance from floor surface to upper surface of table (mm) |
1000 | 1050 |
| Machine tool dimensions W x D x H (mm) |
2100 x 2800 x 2350 | 2380 x 3150 x 2395 |
| Machine installation dimensions W x D (mm) |
3200 x 4100 | 3500 x 4200 |
| Total unit weight（kg) | 5300 | 8000 |
| Total power input | 3-phase 50/60Hz 15 kVA | |

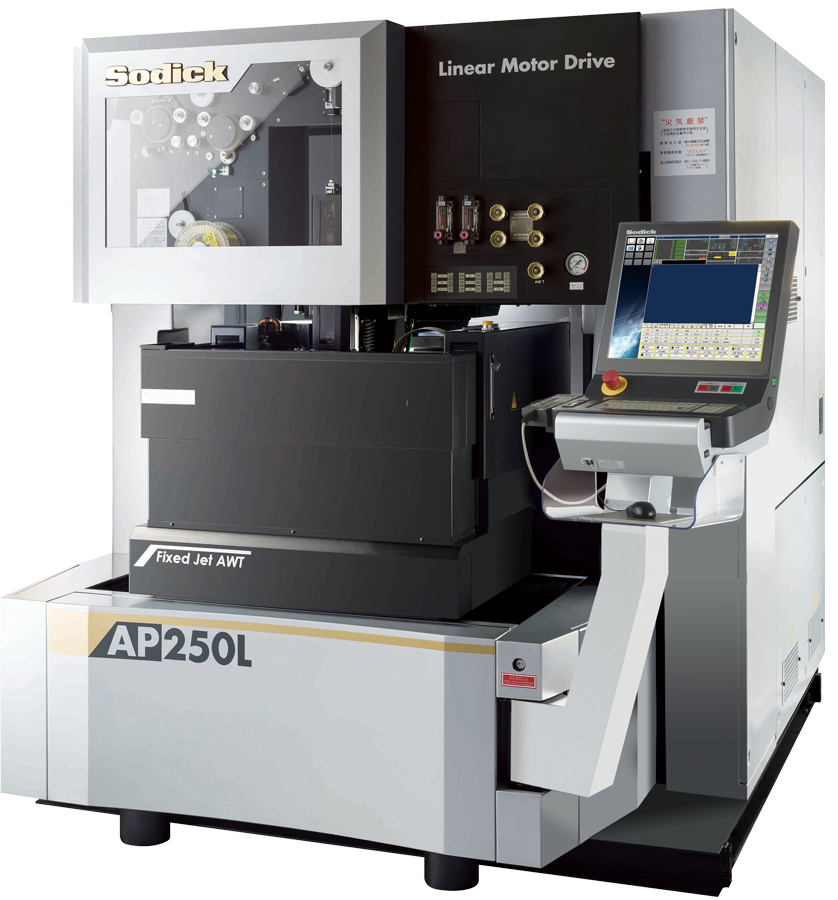

AP250L/AP450L
Linear Motor Drive /Precision Wire-cut EDM
Improved productivity in the superfine and super-precision screw-less drive and new power supply unit.
Main Features
Screw-less drive + gantry type construction
This machine uses a linear motor drive which realizes high speed and fast response and also a low center of gravity gantry-type column, enabling the mechanical displacement due to mass motion to be reduced to the minimum possible, and also realizing greatly improved positioning and machining accuracy.
Newly developed power supply unit
The new power supply unit employs 5th generation EDM "Perfect Active Control" technology. It also uses 1 Gbit/sec serial communication technology, realizing high-speed processing of discharge control and motion control simultaneously.
Improved workability and operability
This machine comes with a three-sided automated vertical sliding machining tank, a U-shaped work stand, and other parts, resulting in greatly improved workability during setup process. In addition, the operation panel is separate from the machine, which enables all work to be performed from the front of the machine.
product Specifications
| Technical Specifications | ||
|---|---|---|
| AP250L | AP450L | |
| X - Axis Travel (mm) | 250 | 450 |
| Y - Axis Travel (mm) | 150 | 300 |
| Z - Axis Travel (mm) | 120 | 120 |
| U x V axis Travel (mm) | 35 x 35 | |
| Work tank inner dimensions W x D (mm) |
895 x 740 | |
| Max. taper angle | ±7°（plate thickness：100mm | |
| Max. workpiece dimensions W x D x H (mm) |
400 x 270 x 100 | 600 x 400 x 100 |
| Max. workpiece weight (kg) | 80 | 100 |
| Wire electrode diameter (mm) | 0.03 ～ 0.2 | 0.05 ～ 0.25 |
| Wire tension (N) | 3 ～ 18 | 3 ～ 25 |
| Maximum wire feed rate (mm/sec) | 250 | |
| Distance from floor surface to upper surface of table (mm) |
1080 | 1084 |
| Machine tool dimensions W x D x H (mm) |
1860 x 2515 x 2105 | 2185 x 2015 x 2160 |
| Machine installation dimensions W x D (mm) |
2575 x 3505 | 3800 x 3450 |
| Total unit weight（kg) | 3730 | 6300 |
| Total power input | 3-phase 50/60Hz 10 kVA | 3-phase 50/60Hz 13 kVA |
