High-speed Small-hole Drilling EDMHigh-speed Small-hole Drilling EDM
K1C
Manual High-speed Small-hole Drilling EDM
The most reliable and the best selling Small-hole Drilling EDM.
Main Features
The cutting edge servo technologies
Thanks to the latest servo technologies achieved through the know-how accumulated through the development of small hole drilling machines, axis response to the servo command has been greatly improved. Compared with the previous model, two times faster machining speed has been made possible.
Micro-step axis feed
Because axis feed is controlled with micro-level precision, stable and reliable machining is ensured.
Abundant machining conditions
To meet wide range of machining needs, abundant machining conditions have been prepared to cover the combination of various types of electrodes and workpiece. ■ Material：SKD11, Cemented carbide, Aluminum, Copper, SUS, Gr ■ Thickness：10, 20, 50, 100mm ■ Electrode dimeter：φ0.25, 0.3, 0.5, 1.0, 2.0, 3.0 mm User friendly design An operation panel was placed on the front of the machine tool for an operator to work with it more comfortably. Display was placed in line with an operator’s eye level. Tool tray was installed in the front of the machine to put dies, electrodes, and etc.
product Specifications
| Technical Specifications | |
|---|---|
| K1C | |
| Axis stroke X×Y×Z (mm) | 200 x 300 x 300 |
| Table size W x D (mm) | 250 x 350 |
| Max. workpiece weight（kg） | 100 |
| Machine tool dimensions W x D x H (mm) | 810 x 870 x 2015 |

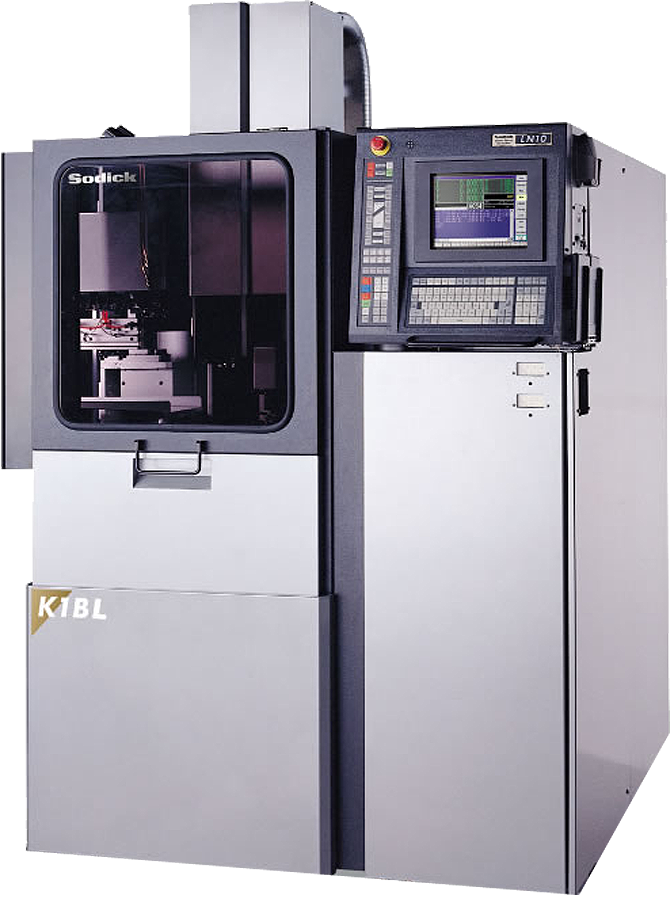

K1BL
CNC Very-small-hole /Drilling EDM
High response of linear motor drive which realizes continuous and high-precision drilling EDM of very small holes.
Main Features
Linear motor provied on main axis
A high-speed, high-response linear motor provided on Z axis expands the machining range, stabilizes the operation and reduces the electrode wear.
High-rigidity double-column structure
A high-rigidity double-column structure has been adopted to enable drilling EDM of very small holes. The structure, wherein a column is held by two struts, secures good resistance to thermal deformation and high rigidity, remarkably enhancing machining accuracy.
Automatic electrode changer (AEC)
An AEC provided for this model changes electrodes reliably to facilitate long and continuous drilling EDM of many holes.
product Specifications
| Technical Specifications | |
|---|---|
| K1BL | |
| Axis stroke X×Y×Z (mm) | 120 x 150 x 300 |
| Table size W x D (mm) | 200 x 250 |
| Max. workpiece weight（kg） | 50 |
| Machine tool dimensions W x D x H (mm) | 1600 x 1530 x 2305 |

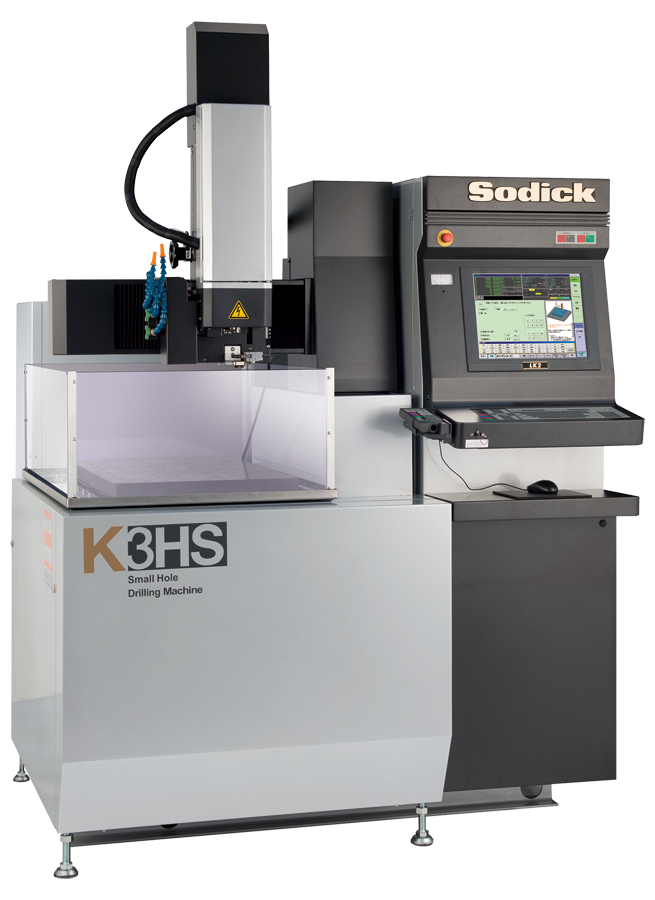

K3HS
Ultra High-speed /Small-hole Drilling EDM/with De-ionized Water
Realized continuous automatic high quality & high-speed hole machining for the automobile industry, medical equipment, and electrical & electronic industries.
Main Features
Ultra High-speed Machining
Standardly equipped Sodick Motion Controller (K-SMC) realizes optimal servo control. Accordingly, ultra highspeed small hole machining is now possible. While ensuring a spacious machining space, realized a spacesaving design. Equipped with machining conditions including small diameter hole machining by CU pipe electrode and BS (brass) pipe electrode.
Equipped with Latest LK2 Power Supply
Equipped with electric discharge power supply LK2, which enables burr-less and electrolytic corrosion-less in a de-ionized water dielectric fluid. Equipped with various machining conditions for steel, cemented carbide, copper, and aluminum.
Workability and Operability
Standardly equipped with automatic programming software "LN Assist" dedicated to small hole EDM drilling machines, so that machining can also be performed easily even by beginners. Also standardly equipped with Sodick's unique automatic electrode feeder AEF and through hole detection function. Various options are available according to the machining needs, including a high column specification.
product Specifications
| Technical Specifications | |
|---|---|
| K3HS | |
| Axis stroke X×Y×Z (mm) | 300 x 400 x 300 |
| Table size W x D (mm) | 480 x 790 |
| Max. workpiece weight（kg） | 300 |
| Machine tool dimensions W x D x H (mm) | 1495 x 1290 x 2150 |
