Wire-cut EDMWire-cut EDM

AL400P "i Groove Edition" NEW!!

First in the world ! Wire Rotation Mechanism "i groove" Achieves high precision machining while suppressing the cumulative pitch error to the utmost in progressive press dies and etc. where high precision is accelerating



Main Features

More efficient and environmentally friendly finishing of thick plate workpieces.

- Wire Rotation Mechanism "i groove" -
Applying rotation to the wire during finishing reduces wire consumption and allows a new wire surface to be constantly used for finishing from the top to the bottom of the workpiece.
This is especially suited to finishing thick plate workpieces.
It offers innovative machining performance including stable machining dimensions, improvement of surface scoring, and reduced wire consumption.
- New groove and step machining function "Stepcut" -
It permits machining at the same speed as under standard conditions while significantly improving the accuracy and range of applications when machining shapes with rapidly changing material thickness, such as stepped shapes.

Latest Electrical Discharge Technology for Rapid and Accurate Machining

Sodick has been working for many years to develop the world's best wire-cut electric discharge machines. The AL Series "i Groove Edition" offers flexible control from high peak currents for efficient rough machining to ultra-fine discharge pulses for micro finishing.
In addition, The Sodick linear motor drive is a non-contact system that eliminates the need for ball screws. It is maintenance-free and maintains its initial accuracy almost indefinitely, with no drop off in machine accuracy due to ball screw wear throughout the life of the machine (10 years or more).

High Precision Premium Specification, Pursuing Ultimate Accuracy

Sodick pursued ultra-high precision in the machining, assembly and adjustment of machinery. By adopting ultra-high precision roller guides, high rigidity was also achieved.
While standardly equipped with doors made of CFRP, the accuracy was thoroughly pursued in all factors originating in the machining accuracy to temperature control by a high quality inverter cooler.


Product Specifications

Machine Tool
X - Axis Travel (mm) 400
Y - Axis Travel (mm) 300
Z - Axis Travel (mm) 250
Work Tank Inner Dimensions (W x D) (mm) 850 x 610
U x V Axis Travel (mm) 150 x 150
Max. Taper Angle (W x D x H) 600 x 470 x 240 (Flush Machining)
600 x 470 x 230 (Immersion Machining)
Max. Weight of Workpiece (kg) 500 (Flush Machining)
350 (Immersion Machining)
Wire Diameter (mm*1) ø0.05 to ø0.3
Wire Tension 3 to 23 N
Max. Wire Feed Speed Max. 420 mm/sec
Distance from Floor to Table Upper Surface (mm) 995
Total Electric Capacity 3-phase 50/60 Hz 13 kVA*2
*1 Less than ø0.05 mm to ø 0.1 mm is optional.
*2 Electric capacity when ø 0.2 mm wire is used.
Dielectric Tank
External Dimensions (W x D x H) 775 x 2,250 x 2,202 mm
Weight (Empty) 450 kg
Capacity 792 liter
Machining Fluid Filtration Method Paper Filter Replacement
Type (4 Cylinder Inner Pressure Type)
Demineralizer Ion Exchange Resin
(18 Liter Specification)
CNC Power Supply SP/SP-E
Max. Machining Current 40A (60A : Option)
Power Supply Input Specification AC200V 50/60 Hz
NC Unit Multi-tasking OS,
K-SMC-LINK Method (M4-LINK)
User’s Memory Capacity Editing: 100,000 Blocks
Saving: 30 M bytes
Memory Device SSD, Dedicated USB Memory
Input Method Dedicated USB Memory, Multi-touch Panel,
Keyboard, LAN
Display Method 19-inch TFT-LCD
Printable Characters Kanji (JIS Level 1 Kanji Characters),
Alphabet, Numerical Characters, etc..
Keyboard Standard 101 Keyboard, Function Key
Position Command Method Incremental / Absolute in Combination
Input Range ±999999.999/±99999.9999
/±9999.99999/±999.999999 (Changeable)
Electric Discharge Machining Condition
Registration Function
10,000 conditions can be registered
(C0000 to C9999)
Offset Function 10,000 conditions can be registered
(H0000 to H9999)
Program Sequence Number Specification Setting from N000000000 to N999999999
Coordinate Value 60
Number of Simultaneously Controlled Axes 4 Axes Max (SPW-E: 8 Axes Max *3)
Min. Command Unit 0.001μm
Min. Drive Unit 0.01μm (X, Y, U, V Axes)
Max. Feed Speed X, Y-axis: Max. 3 m/min, Z-axis: 2 m/min
Position Detection Method Full Closed Loop (Linear Scale)
Drive System Linear Motor (X, Y, U, V Axes)
Drive Mechanism Linear Motor
Various Compensation Pitch Error, Plane Pitch Error, Torque and
Torsion Compensation for Each Axis.
Workpiece Inclination and Workpiece
Distortion Compensation.
Graphics Function XY, YZ and XZ Planes, Drawing while
Machining, Machining Position, 3-dimensional
Machining, Zoom In, Zoom Out, Rotation,
Background Drawing, etc.
*3 SPW-E maximum of 8 axis specification is available for
AL400P/AL400G/ALN400G, AL600P/AL600G/ALN600G.

ALC400P "i Groove Edition"

Smart Pulse & Smart Linear

Super-accurate Wire EDM

When Sodick set itself the task of improving on the performance and accuracy of its ALC-G series it took on a major challenge – these machines are already technical leaders, incorporating Sodick linear technology and digital Smart Pulse generators. But some sectors have requirements are even more demanding and Sodick was finding that an increasing number of customers were looking for super-high accuracy, for example a pitch accuracy of +/-1 micron – and every element of the ALC-P series has been developed to achieve these objectives.


Main Features

New Wire Rotation Mechanism

This newly developed technology, patented by Sodick, rotates the wire during the skim cut operation, so that workpieces are machined from top to bottom with the “unconsumed” surface of the wire.
Conventionally, wire electrodes are controlled solely by tension and running speed, while being constrained by a die. Sodick’s iGroove rotation mechanism provides additional control over the wire, resulting in increased surface quality and improved geometric accuracy, whilst at the same time minimising.

Machine Construction

The machine has a variety of standard built-in functions, including a new tension servo function, auto fluid-level control, and the new FJ-AWT (Automatic Wire Threader). Paying close attention
to the machine accessibility for work preparation in the field, a square-shaped work stand, ceramic stand base, 3-sided machining tank with automatic lifting door, quadruple filters and many
other features, all of which works to ensure improvements in productivity. Furthermore, by adopting a unique full-cover machine structure, comfort and safety in the work environment is not compromised.


Product Specifications

Technical Specifications
X - Axis Travel (mm) 400
Y - Axis Travel (mm) 300
Z - Axis Travel (mm) 250
Taper angle (Work. thickness 130mm) ± 25°
Work tank dimensions (W x D) 850 x 610 mm
Max. workpiece weight 500 kg
Wire Diameter 0.1 ~ 0.3 mm
Wire Tension 3 ~ 23N
Max. Wire Speed 420 mm/sec
Distance from floor to table top 995 mm
Machine tool dimensions (W x D x H) 2,190 x 2,590 x 2,230 mm
Machine installation dimensions 3,425 x 3,850 mm
Machine tool weight 3400 kg
Total power input 3-phases 50/60Hz 13KVA
External dimensions (W x D) 775 x 2,250 mm
Empty weight 450 kg
Capacity 790 lit
Dielectric fluid filtration system 4 Replaceable paper filters internal pressure)
Deionizer Ion exchange resin (18-lit. type)

AL600P "i Groove Edition" NEW!!

Linear Motor Drive /High Speed & High Precision Wire-cut EDM

First in the world ! Wire Rotation Mechanism "i groove" Achieves high precision machining while suppressing the cumulative pitch error to the utmost in progressive press dies and etc. where high precision is accelerating



Main Features

More efficient and environmentally friendly finishing of thick plate workpieces.

- Wire Rotation Mechanism "i groove" -
Applying rotation to the wire during finishing reduces wire consumption and allows a new wire surface to be constantly used for finishing from the top to the bottom of the workpiece.
This is especially suited to finishing thick plate workpieces.
It offers innovative machining performance including stable machining dimensions, improvement of surface scoring, and reduced wire consumption.
- New groove and step machining function "Stepcut" -
It permits machining at the same speed as under standard conditions while significantly improving the accuracy and range of applications when machining shapes with rapidly changing material thickness, such as stepped shapes.

Latest Electrical Discharge Technology for Rapid and Accurate Machining

Sodick has been working for many years to develop the world's best wire-cut electric discharge machines. The AL Series "i Groove Edition" offers flexible control from high peak currents for efficient rough machining to ultra-fine discharge pulses for micro finishing.
In addition, The Sodick linear motor drive is a non-contact system that eliminates the need for ball screws. It is maintenance-free and maintains its initial accuracy almost indefinitely, with no drop off in machine accuracy due to ball screw wear throughout the life of the machine (10 years or more).

High Precision Premium Specification, Pursuing Ultimate Accuracy

Sodick pursued ultra-high precision in the machining, assembly and adjustment of machinery. By adopting ultra-high precision roller guides, high rigidity was also achieved.
While standardly equipped with doors made of CFRP, the accuracy was thoroughly pursued in all factors originating in the machining accuracy to temperature control by a high quality inverter cooler.


Product Specifications

Technical Specifications
Machining Tank Inner Dimensions (W x D) 1,050 x 710 mm
X Axis Travel 600 mm
Y Axis Travel 400 mm
Z Axis Travel 350 mm
U x V Axis Travel 150 x 150 mm
Max. Taper Angle ± 25° (Thickness: 130 mm)
Max. Workpiece Size (W x D x H) 800 x 570 x 340 (Flush Machining) mm
800 x 570 x 280 (Immersion Machining) mm
Max. Weight of Workpiece 1,000 kg
Wire Diameter ø0.05 to ø0.3 mm *1
Wire Tension 3 to 23 N
Max. Wire Feed Speed Max. 420 mm/sec
Distance from Floor to Table Upper Surface 995 mm
Total Electric Capacity 3-phase 50/60 Hz 13 kVA*2
External Dimensions (W x D x H) 870 x 2,605 x 2,179 mm
Weight (Empty) 500 kg
Capacity 1001 liter
Machining Fluid Filtration Method Paper Filter Replacement
Type (4 Cylinder Inner Pressure Type)
Demineralizer Ion Exchange Resin (18 Liter Specification)
Max. Machining Current 40A (60A : Option)
Power Supply Input Specification AC200V 50/60 Hz
NC Unit Multi-tasking OS,
K-SMC-LINK Method (M4-LINK)
User’s Memory Capacity Editing: 100,000 Blocks
Saving: 30 M bytes
Memory Device SSD, Dedicated USB Memory
Input Method Dedicated USB Memory, Multi-touch Panel,
Keyboard, LAN
Display Method 19-inch TFT-LCD
Printable Characters Kanji (JIS Level 1 Kanji Characters),
Alphabet, Numerical Characters, etc..
Keyboard Standard 101 Keyboard, Function Key
Position Command Method Incremental / Absolute in Combination
Input Range ±999999.999/±99999.9999
/±9999.99999/±999.999999 (Changeable)
Electric Discharge Machining Condition
Registration Function
10,000 conditions can be registered
(C0000 to C9999)
Offset Function 10,000 conditions can be registered
(H0000 to H9999)
Program Sequence Number Specification Setting from N000000000 to N999999999
Coordinate Value 60
Number of Simultaneously Controlled Axes 4 Axes Max (SPW-E: 8 Axes Max *3)
Min. Command Unit 0.001μm
Min. Drive Unit 0.01μm (X, Y, U, V Axes)
Max. Feed Speed X, Y-axis: Max. 3 m/min, Z-axis: 2 m/min
Position Detection Method Full Closed Loop (Linear Scale)
Drive System Linear Motor (X, Y, U, V Axes)
Drive Mechanism Linear Motor
Various Compensation Pitch Error, Plane Pitch Error, Torque and
Torsion Compensation for Each Axis.
Workpiece Inclination and Workpiece
Distortion Compensation.
Graphics Function XY, YZ and XZ Planes, Drawing while
Machining, Machining Position, 3-dimensional
Machining, Zoom In, Zoom Out, Rotation,
Background Drawing, etc.
*1 Less than ø0.05 mm to ø 0.1 mm is optional.
*2 Electric capacity when ø 0.2 mm wire is used.
*3 SPW-E maximum of 8 axis specification is available for
AL400P/AL400G/ALN400G, AL600P/AL600G/ALN600G.

ALC600P "i Groove Edition"

Smart Pulse & Smart Linear

Super-accurateWire EDM

When Sodick set itself the task of improving on the performance and accuracy of its ALC-G series it took on a major challenge – these machines are already technical leaders, incorporating Sodick linear technology and digital Smart Pulse generators. But some sectors have requirements are even more demanding and Sodick was finding that an increasing number of customers were looking for super-high accuracy, for example a pitch accuracy of +/-1 micron – and every element of the ALC-P series has been developed to achieve these objectives.


Main Features

New Wire Rotation Mechanism

This newly developed technology, patented by Sodick, rotates the wire during the skim cut operation, so that workpieces are machined from top to bottom with the “unconsumed” surface of the wire.
Conventionally, wire electrodes are controlled solely by tension and running speed, while being constrained by a die. Sodick’s iGroove rotation mechanism provides additional control over the wire, resulting in increased surface quality and improved geometric accuracy, whilst at the same time minimising.

Machine Construction

The machine has a variety of standard built-in functions, including a new tension servo function, auto fluid-level control, and the new FJ-AWT (Automatic Wire Threader). Paying close attention
to the machine accessibility for work preparation in the field, a square-shaped work stand, ceramic stand base, 3-sided machining tank with automatic lifting door, quadruple filters and many
other features, all of which works to ensure improvements in productivity. Furthermore, by adopting a unique full-cover machine structure, comfort and safety in the work environment is not compromised.


Product Specifications

Technical Specifications
X - Axis Travel (mm) 600
Y - Axis Travel (mm) 350
Z - Axis Travel (mm) 350
Taper angle (Work. thickness 130mm) ± 25°
Work tank dimensions (W x D) 1050 x 710 mm
Max. workpiece weight 1000 kg
Wire Diameter 0.1 ~ 0.3 mm
Wire Tension 3 ~ 23N
Max. Wire Speed 420 mm/sec
Distance from floor to table top 995 mm
Machine tool dimensions (W x D x H) 2,575 x 2,945 x 2,345 mm
Machine installation dimensions 3,860 x 4,245 mm
Machine tool weight 4,600 kg
Total power input 3-phases 50/60Hz 13KVA
External dimensions (W x D) 870 x 2,605 mm
Empty weight 500 kg
Capacity 1000 lit
Dielectric fluid filtration system 4 Replaceable paper filters internal pressure)
Deionizer Ion exchange resin (18-lit. type)

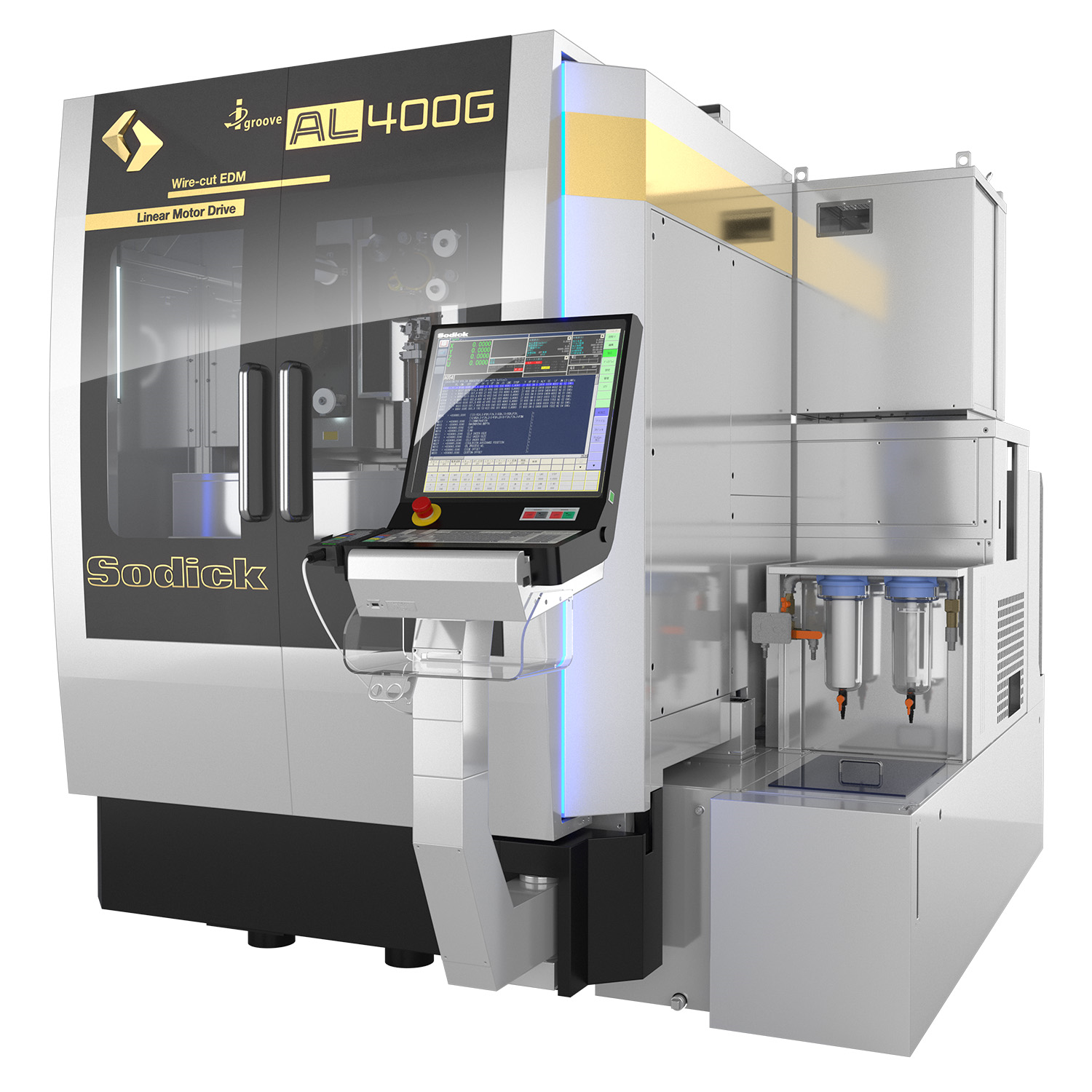

AL400G "i Groove Edition" NEW!!

Linear Motor Drive /High speed & High Performance Wire-cut EDM

First in the world ! Wire Rotation Mechanism "i groove"
Achieving the superlative performance with in-house developed core technologies.



Main Features

More efficient and environmentally friendly finishing of thick plate workpieces.

Wire Rotation Mechanism "i groove"
Applying rotation to the wire during finishing reduces wire consumption and allows a new wire surface to be constantly used for finishing from the top to the bottom of the workpiece.
This is especially suited to finishing thick plate workpieces.It offers innovative machining performance including stable machining dimensions, improvement of surface scoring, and reduced wire consumption.
New groove and step machining function "Stepcut"
It permits machining at the same speed as under standard conditions while significantly improving the accuracy and range of applications when machining shapes with rapidly changing material thickness, such as stepped shapes.

Latest Electrical Discharge Technology for Rapid and Accurate Machining

Sodick has been working for many years to develop the world's best wire-cut electric discharge machines. The AL Series "i Groove Edition" offers flexible control from high peak currents for efficient rough machining to ultra-fine discharge pulses for micro finishing.
In addition, The Sodick linear motor drive is a non-contact system that eliminates the need for ball screws. It is maintenance-free and maintains its initial accuracy almost indefinitely, with no drop off in machine accuracy due to ball screw wear throughout the life of the machine (10 years or more).

Temperature-synchronized machine

All models in the series are equipped as standard with the AIM (AI Maintenance) environmental temperature diagnosis function and TH COM thermal displacement correction function that can handle everything from high-accuracy to rough temperature environments, in addition to a logging function and temperature display of the machine surroundings.
In addition, the full-cover specification machine features a temperature equalization system to provide a more stable machining environment.


Product Specifications

Technical Specifications
Machining Tank Inner Dimensions (W x D) 850 x 610 mm
X Axis Travel 400 mm
Y Axis Travel 300 mm
Z Axis Travel 250 mm
U x V Axis Travel 150 x 150 mm
Max. Taper Angle ± 25° (Thickness: 130 mm)
Max. Workpiece Size (W x D x H) 600 x 470 x 240 (Flush Machining) mm
600 x 470 x 230 (Immersion Machining) mm
Max. Weight of Workpiece 500 (Flush Machining) kg
350 (Immersion Machining) kg
Wire Diameter ø0.05 to ø0.3 mm *1
Wire Tension 3 to 23 N
Max. Wire Feed Speed Max. 420 mm/sec
Distance from Floor to Table Upper Surface 995 mm
Total Electric Capacity 3-phase 50/60 Hz 13 kVA*2
External Dimensions (W x D x H) 775 x 2,250 x 2,202 mm
Weight (Empty) 450 kg
Capacity 792 liter
Machining Fluid Filtration Method Paper Filter Replacement
Type (4 Cylinder Inner Pressure Type)
Demineralizer Ion Exchange Resin
(18 Liter Specification)
Max. Machining Current 40 A (60A : Option)
Power Supply Input Specification AC200V 50/60 Hz
NC Unit Multi-tasking OS,
K-SMC-LINK Method (M4-LINK)
User’s Memory Capacity Editing: 100,000 blocks
Saving: 30 M bytes
Memory Device SSD, Dedicated USB Memory
Input Method Dedicated USB Memory, Multi-touch Panel,
Keyboard, LAN
Display Method 19-inch TFT-LCD
Printable Characters Kanji (JIS Level 1 Kanji Characters),
Alphabet, Numerical Characters, etc..
Keyboard Standard 101 Keyboard, Function Key
Position Command Method Incremental / Absolute in Combination
Input Range ±999999.999/±99999.9999
/±9999.99999/±999.999999 (Changeable)
Electric Discharge Machining Condition 10,000 conditions can be registered Registration Function
(C0000 to C9999)
Offset Function 10,000 conditions can be registered
(H0000 to H9999)
Program Sequence Number Specification Setting from N000000000 to N999999999
Coordinate Value 60
Number of Simultaneously Controlled Axes 4 Axes Max (SPW-E: 8 Axes Max *3)
Min. Command Unit 0.001μm
Min. Drive Unit 0.01 μm (X, Y, U, V Axes)
Max. Feed Speed X, Y-axis: Max. 3 m/min, Z-axis: 2 m/min
Position Detection Method Full Closed Loop (Linear Scale)
Drive System Linear Motor (X, Y, U, V Axes)
Drive Mechanism Linear Motor
Various Compensation Pitch Error, Plane Pitch Error, Torque and
Torsion Compensation for Each Axis.
Workpiece Inclination and Workpiece
Distortion Compensation.
Graphics Function XY, YZ and XZ Planes, Drawing while
Machining, Machining Position, 3-dimensional
Machining, Zoom In, Zoom Out, Rotation,
Background Drawing, etc.
*1 Less than ø0.05 mm to ø 0.1 mm is optional.
*2 Electric capacity when ø 0.2 mm wire is used.
*3 SPW-E maximum of 8 axis specification is available for
AL400P/AL400G/ALN400G, AL600P/AL600G/ALN600G.

ALC400G "i Groove Edition"

Smart Linear, Smart Pulse, Premium

First in the world ! Wire Rotation Mechanism "i groove"
Achieving the superlative performance with in-house developed core technologies.


Product Specifications

Technical Specifications
X/Y/Z axis travel (mm) 400 x 300 x 250
U/V axis travel (mm) 150 x 150
Taper angle (Work. height 130mm) ±25°
Work tank dimensions (W x D, mm) 850 x 610
Max. workpiece weight (kg) 500
Wire diameter (mm) Ø 0.1 ~ Ø 0.3
Wire tension (N) 3 ~ 23
Max. wire speed (mm/sec) 420
Max. wire bobbin (kg) 20
Distance from floor to table top (mm) 995
Machine tool dimensions (W x D x H, mm) 2,190 x 2,590 x 2,230
Machine tool weight (kg) 3,400
Total power input 3-phases 50/60Hz 13KVA
External Dimensions (W x D x H) 775 x 2,250
Weight (Empty) 450 kg
Dielectric fluid De-ionized Water
Capacity 790 liter
Dielectric fluid filtration system 4 Replaceable paper filters
(internal pressure
Standard Features
Linear motor (X/Y/U/V axis)
Absolute linear scales (X/Y/U/V axis)
Ceramic work-zone
Remote controller
3-sided rise and fall work tank
Improved ease of operation
Advanced wire tension control
SPW generator
SODICK Fine Corner Control
Energy saving circuit
Digital PIKA W Plus for super surface finish
DSF (Dynamic Shape First)
Automatic water level control
Fixed Jet AWT (Automatic wire threader)
Wire end remover
Dielectric cooling unit
Voltage stabiliser
LAN interface
19“ TFT colour screen
Intelligent Q3vic EDW
Anti-virus Software
USB port
Work light
Built-in 20kg wire feeder
Options
0.05mm wire spec.
Esprit CAM software offline (regional option)
HTP high-voltage circuit
Automation system
Taper flex 45 NEO (for taper cutting up to 45°)
WS4P/5P rotary table (indexing or simultaneous movement)
L-Cut (Wire chopper)
8-axis Simultaneous Control (Factory option)
Anti-Corrosion System (ANCS)
Booster (Total 60A)

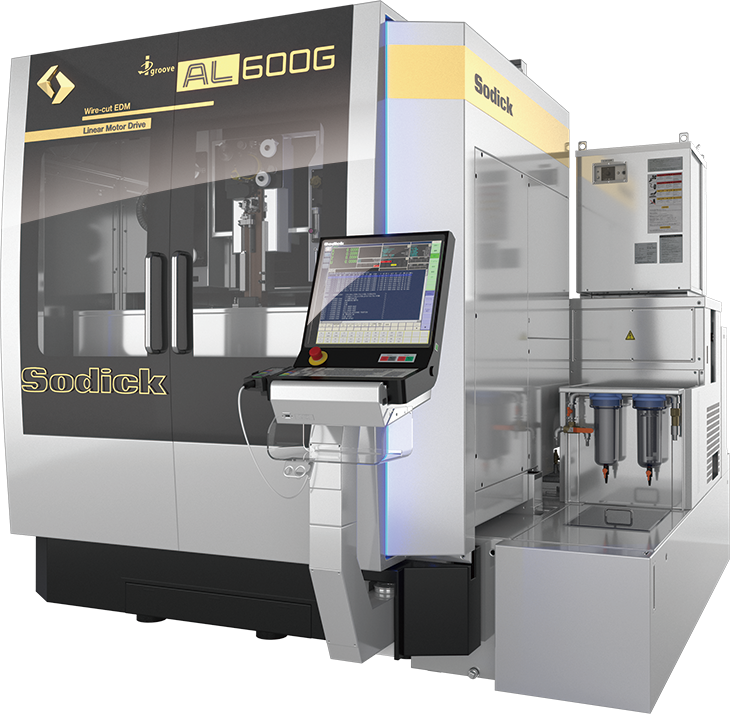

AL600G "i Groove Edition" NEW!!

Linear Motor Drive /High speed & High Performance Wire-cut EDM

First in the world ! Wire Rotation Mechanism "i groove"
Achieving the superlative performance with in-house developed core technologies.



Main Features

More efficient and environmentally friendly finishing of thick plate workpieces.

Wire Rotation Mechanism "i groove"
Applying rotation to the wire during finishing reduces wire consumption and allows a new wire surface to be constantly used for finishing from the top to the bottom of the workpiece.
This is especially suited to finishing thick plate workpieces.It offers innovative machining performance including stable machining dimensions, improvement of surface scoring, and reduced wire consumption.
New groove and step machining function "Stepcut"
It permits machining at the same speed as under standard conditions while significantly improving the accuracy and range of applications when machining shapes with rapidly changing material thickness, such as stepped shapes.

Latest Electrical Discharge Technology for Rapid and Accurate Machining

Sodick has been working for many years to develop the world's best wire-cut electric discharge machines. The AL Series "i Groove Edition" offers flexible control from high peak currents for efficient rough machining to ultra-fine discharge pulses for micro finishing.
In addition, The Sodick linear motor drive is a non-contact system that eliminates the need for ball screws. It is maintenance-free and maintains its initial accuracy almost indefinitely, with no drop off in machine accuracy due to ball screw wear throughout the life of the machine (10 years or more).

Temperature-synchronized machine

All models in the series are equipped as standard with the AIM (AI Maintenance) environmental temperature diagnosis function and TH COM thermal displacement correction function that can handle everything from high-accuracy to rough temperature environments, in addition to a logging function and temperature display of the machine surroundings.
In addition, the full-cover specification machine features a temperature equalization system to provide a more stable machining environment.


Product Specifications

Technical Specifications
Machining Tank Inner Dimensions (W x D) 1,050 x 710 mm
X Axis Travel 600 mm
Y Axis Travel 400 mm
Z Axis Travel 350 mm
U x V Axis Travel 150 x 150 mm
Max. Taper Angle ± 25° (Thickness: 130 mm)
Max. Workpiece Size (W x D x H) 800 x 570 x 340 (Flush Machining) mm
800 x 570 x 280 (Immersion Machining) mm
Max. Weight of Workpiece 1,000
Wire Diameter ø0.05 to ø0.3 mm *1
Wire Tension 3 to 23 N
Max. Wire Feed Speed Max. 420 mm/sec
Distance from Floor to Table Upper Surface 995 mm
Total Electric Capacity 3-phase 50/60 Hz 13 kVA*2
External Dimensions (W x D x H) 870 x 2,605 x 2,179 mm
Weight (Empty) 500 kg
Capacity 1001 liter
Machining Fluid Filtration Method Paper Filter Replacement
Type (4 Cylinder Inner Pressure Type)
Demineralizer Ion Exchange Resin
(18 Liter Specification)
Max. Machining Current 40 A (60A : Option)
Power Supply Input Specification AC200V 50/60 Hz
NC Unit Multi-tasking OS,
K-SMC-LINK Method (M4-LINK)
User’s Memory Capacity Editing: 100,000 blocks
Saving: 30 M bytes
Memory Device SSD, Dedicated USB Memory
Input Method Dedicated USB Memory, Multi-touch Panel,
Keyboard, LAN
Display Method 19-inch TFT-LCD
Printable Characters Kanji (JIS Level 1 Kanji Characters),
Alphabet, Numerical Characters, etc..
Keyboard Standard 101 Keyboard, Function Key
Position Command Method Incremental / Absolute in Combination
Input Range ±999999.999/±99999.9999
/±9999.99999/±999.999999 (Changeable)
Electric Discharge Machining Condition 10,000 conditions can be registered Registration Function
(C0000 to C9999)
Offset Function 10,000 conditions can be registered
(H0000 to H9999)
Program Sequence Number Specification Setting from N000000000 to N999999999
Coordinate Value 60
Number of Simultaneously Controlled Axes 4 Axes Max (SPW-E: 8 Axes Max *3)
Min. Command Unit 0.001μm
Min. Drive Unit 0.01 μm (X, Y, U, V Axes)
Max. Feed Speed X, Y-axis: Max. 3 m/min, Z-axis: 2 m/min
Position Detection Method Full Closed Loop (Linear Scale)
Drive System Linear Motor (X, Y, U, V Axes)
Drive Mechanism Linear Motor
Various Compensation Pitch Error, Plane Pitch Error, Torque and
Torsion Compensation for Each Axis.
Workpiece Inclination and Workpiece
Distortion Compensation.
Graphics Function XY, YZ and XZ Planes, Drawing while
Machining, Machining Position, 3-dimensional
Machining, Zoom In, Zoom Out, Rotation,
Background Drawing, etc.
*1 Less than ø0.05 mm to ø 0.1 mm is optional.
*2 Electric capacity when ø 0.2 mm wire is used.
*3 SPW-E maximum of 8 axis specification is available for
AL400P/AL400G/ALN400G, AL600P/AL600G/ALN600G.

ALC600G "i Groove Edition"

Smart Linear, Smart Pulse, Premium

First in the world ! Wire Rotation Mechanism "i groove"
Achieving the superlative performance with in-house developed core technologies.


Product Specifications

Technical Specifications
X/Y/Z axis travel (mm) 600 x 400 x 350
U/V axis travel (mm) 150 x 150
Taper angle (Work. height 130mm) ±25°
Work tank dimensions (W x D, mm) 1050 x 710
Max. workpiece weight (kg) 1000
Wire diameter (mm) Ø 0.1 ~ Ø 0.3
Wire tension (N) 3 ~ 23
Max. wire speed (mm/sec) 420
Max. wire bobbin (kg) 20
Distance from floor to table top (mm) 995
Machine tool dimensions (W x D x H, mm) 2,575 x 2,945 x 2,345
Machine tool weight (kg) 4,600
Total power input 3-phases 50/60Hz 13KVA
External Dimensions (W x D x H) 870 x 2,605
Weight (Empty) 500 kg
Dielectric fluid De-ionized Water
Capacity 1,000 liter
Dielectric fluid filtration system 4 Replaceable paper filters
(internal pressure
Standard Features
Linear motor (X/Y/U/V axis)
Absolute linear scales (X/Y/U/V axis)
Sodick Motion Controller
Ceramic work-zone
Remote controller
3-sided rise and fall work tank
Triple filtration system
Improved ease of operation
Advanced wire tension control
SPW generator
SODICK Fine Corner Control
Energy saving circuit
Digital PIKA W Plus for super surface finish
DSF (Dynamic Shape First)
Automatic water level control
Fixed Jet AWT (Automatic wire threader)
Wire end remover
Dielectric cooling unit
Voltage stabiliser
LAN interface
19“ TFT colour screen
Intelligent Q3vic EDW
Anti-virus Software
Work light
Built-in 20kg wire feeder
Options
0.05mm wire spec.
Esprit CAM software offline (regional option)
HTP high-voltage circuit
Automation system
Taper flex 45 NEO (for taper cutting up to 45°)
WS4P/5P rotary table (indexing or simultaneous movement)
L-Cut (Wire chopper)
8-axis Simultaneous Control (Factory option)
Anti-Corrosion System (ANCS)
Booster (Total 60A)

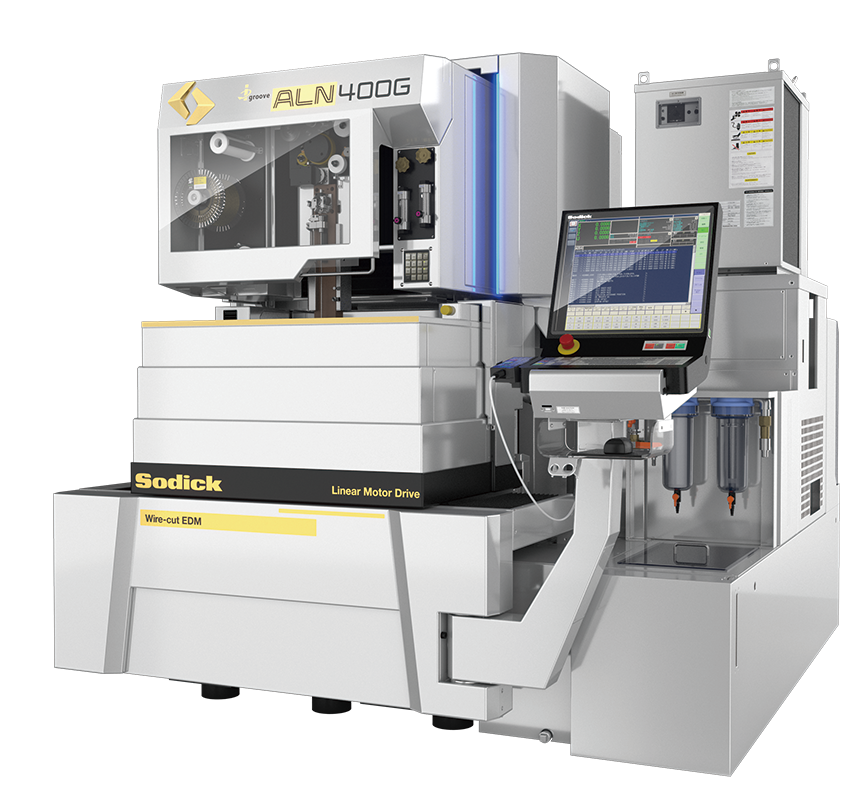

ALN400G "i Groove Edition" NEW!!

Linear Motor Drive /High speed & High Performance Wire-cut EDM

First in the world ! Wire Rotation Mechanism "i groove"
Achieving the superlative performance with in-house developed core technologies.



Main Features

More efficient and environmentally friendly finishing of thick plate workpieces.

Wire Rotation Mechanism "i groove"
Applying rotation to the wire during finishing reduces wire consumption and allows a new wire surface to be constantly used for finishing from the top to the bottom of the workpiece.
This is especially suited to finishing thick plate workpieces. It offers innovative machining performance including stable machining dimensions, improvement of surface scoring, and reduced wire consumption.
New groove and step machining function "Stepcut"
It permits machining at the same speed as under standard conditions while significantly improving the accuracy and range of applications when machining shapes with rapidly changing material thickness, such as stepped shapes., such as stepped shapes.

Latest Electrical Discharge Technology for Rapid and Accurate Machining

Sodick has been working for many years to develop the world's best wire-cut electric discharge machines. The AL Series "i Groove Edition" offers flexible control from high peak currents for efficient rough machining to ultra-fine discharge pulses for micro finishing.
In addition, The Sodick linear motor drive is a non-contact system that eliminates the need for ball screws. It is maintenance-free and maintains its initial accuracy almost indefinitely, with no drop off in machine accuracy due to ball screw wear throughout the life of the machine (10 years or more).

Temperature-synchronized machine

All models in the series are equipped as standard with the AIM (AI Maintenance) environmental temperature diagnosis function and TH COM thermal displacement correction function that can handle everything from high-accuracy to rough temperature environments, in addition to a logging function and temperature display of the machine surroundings.
"The newly designed service tank provides a more stable machining environment and improves ease-of-maintenance.
The new service tank has a three-tank structure that completely separates fresh water and the machining fluid after use.
It prevents sludge contamination during machining and provides a more ideal machining environment."


Comprehensive Range of Automatic Options :
- New "S³CORE" automatic core processing device that supports fully unmanned machining from rough machining to finishing
- Machine design that allows easy linking to a workpiece transport robot system
- Camera-type on-board measurement system that significantly enhances work efficiency

Product Specifications

Technical Specifications
Machining Tank Inner Dimensions (W x D) 850 x 610 mm
X Axis Travel 400 mm
Y Axis Travel 300 mm
Z Axis Travel 250 mm
U x V Axis Travel 150 x 150 mm
Max. Taper Angle ± 25° (Thickness: 130 mm)
Max. Workpiece Size (W x D x H) 600 x 470 x 240 (Flush Machining) mm
600 x 470 x 230 (Immersion Machining) mm
Max. Weight of Workpiece 500 (Flush Machining) kg
350 (Immersion Machining) kg
Wire Diameter ø0.05 to ø0.3 mm *1
Wire Tension 3 to 23 N
Max. Wire Feed Speed Max. 420 mm/sec
Distance from Floor to Table Upper Surface 995 mm
Total Electric Capacity 3-phase 50/60 Hz 13 kVA*2
External Dimensions (W x D x H) 775 x 2,250 x 2,202 mm
Weight (Empty) 450 kg
Capacity 792 liter
Machining Fluid Filtration Method Paper Filter Replacement
Type (4 Cylinder Inner Pressure Type)
Demineralizer Ion Exchange Resin
(18 Liter Specification)
Max. Machining Current 40 A (60A : Option)
Power Supply Input Specification AC200V 50/60 Hz
NC Unit Multi-tasking OS,
K-SMC-LINK Method (M4-LINK)
User’s Memory Capacity Editing: 100,000 blocks
Saving: 30 M bytes
Memory Device SSD, Dedicated USB Memory
Input Method Dedicated USB Memory, Multi-touch Panel,
Keyboard, LAN
Display Method 19-inch TFT-LCD
Printable Characters Kanji (JIS Level 1 Kanji Characters),
Alphabet, Numerical Characters, etc..
Keyboard Standard 101 Keyboard, Function Key
Position Command Method Incremental / Absolute in Combination
Input Range ±999999.999/±99999.9999
/±9999.99999/±999.999999 (Changeable)
Electric Discharge Machining Condition 10,000 conditions can be registered Registration Function
(C0000 to C9999)
Offset Function 10,000 conditions can be registered
(H0000 to H9999)
Program Sequence Number Specification Setting from N000000000 to N999999999
Coordinate Value 60
Number of Simultaneously Controlled Axes 4 Axes Max (SPW-E: 8 Axes Max *3)
Min. Command Unit 0.001μm
Min. Drive Unit 0.01 μm (X, Y, U, V Axes)
Max. Feed Speed X, Y-axis: Max. 3 m/min, Z-axis: 2 m/min
Position Detection Method Full Closed Loop (Linear Scale)
Drive System Linear Motor (X, Y, U, V Axes)
Drive Mechanism Linear Motor
Various Compensation Pitch Error, Plane Pitch Error, Torque and
Torsion Compensation for Each Axis.
Workpiece Inclination and Workpiece
Distortion Compensation.
Graphics Function XY, YZ and XZ Planes, Drawing while
Machining, Machining Position, 3-dimensional
Machining, Zoom In, Zoom Out, Rotation,
Background Drawing, etc.
*1 Less than ø0.05 mm to ø 0.1 mm is optional.
*2 Electric capacity when ø 0.2 mm wire is used.
*3 SPW-E maximum of 8 axis specification is available for
AL400P/AL400G/ALN400G, AL600P/AL600G/ALN600G.

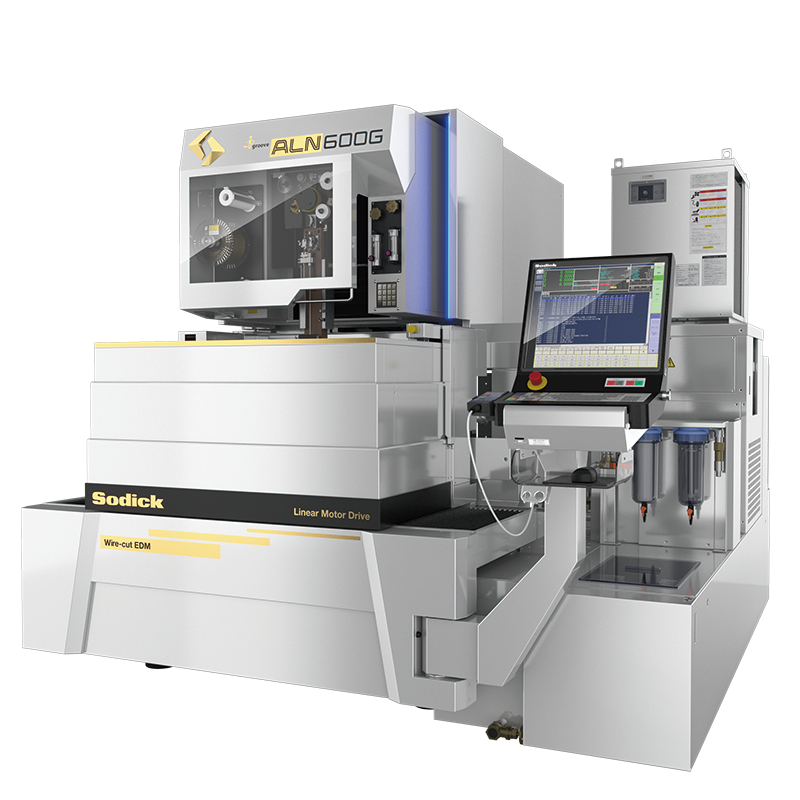

ALN600G "i Groove Edition" NEW!!

Linear Motor Drive /High speed & High Performance Wire-cut EDM

First in the world ! Wire Rotation Mechanism "i groove"
Achieving the superlative performance with in-house developed core technologies.



Main Features

More efficient and environmentally friendly finishing of thick plate workpieces.

Wire Rotation Mechanism "i groove"
Applying rotation to the wire during finishing reduces wire consumption and allows a new wire surface to be constantly used for finishing from the top to the bottom of the workpiece.
This is especially suited to finishing thick plate workpieces. It offers innovative machining performance including stable machining dimensions, improvement of surface scoring, and reduced wire consumption.
New groove and step machining function "Stepcut"
It permits machining at the same speed as under standard conditions while significantly improving the accuracy and range of applications when machining shapes with rapidly changing material thickness, such as stepped shapes.

Latest Electrical Discharge Technology for Rapid and Accurate Machining

Sodick has been working for many years to develop the world's best wire-cut electric discharge machines. The AL Series "i Groove Edition" offers flexible control from high peak currents for efficient rough machining to ultra-fine discharge pulses for micro finishing.
In addition, The Sodick linear motor drive is a non-contact system that eliminates the need for ball screws. It is maintenance-free and maintains its initial accuracy almost indefinitely, with no drop off in machine accuracy due to ball screw wear throughout the life of the machine (10 years or more).

Temperature-synchronized machine

All models in the series are equipped as standard with the AIM (AI Maintenance) environmental temperature diagnosis function and TH COM thermal displacement correction function that can handle everything from high-accuracy to rough temperature environments, in addition to a logging function and temperature display of the machine surroundings.
"The newly designed service tank provides a more stable machining environment and improves ease-of-maintenance.
The new service tank has a three-tank structure that completely separates fresh water and the machining fluid after use.
It prevents sludge contamination during machining and provides a more ideal machining environment."
Comprehensive Range of Automatic Options :
- New "S³CORE" automatic core processing device that supports fully unmanned machining from rough machining to finishing
- Machine design that allows easy linking to a workpiece transport robot system
- Camera-type on-board measurement system that significantly enhances work efficiency

Product Specifications

Technical Specifications
Machining Tank Inner Dimensions (W x D) 1,050 x 710 mm
X Axis Travel 600 mm
Y Axis Travel 400 mm
Z Axis Travel 350 mm
U x V Axis Travel 150 x 150 mm
Max. Taper Angle ± 25° (Thickness: 130 mm)
Max. Workpiece Size (W x D x H) 800 x 570 x 340 (Flush Machining) mm
800 x 570 x 340 (Immersion Machining) mm
Max. Weight of Workpiece 1,000 kg
Wire Diameter ø0.05 to ø0.3 mm *1
Wire Tension 3 to 23 N
Max. Wire Feed Speed Max. 420 mm/sec
Distance from Floor to Table Upper Surface 995 mm
Total Electric Capacity 3-phase 50/60 Hz 13 kVA*2
External Dimensions (W x D x H) 870 x 2,605 x 2,179 mm
Weight (Empty) 500 kg
Capacity 1001 liter
Machining Fluid Filtration Method Paper Filter Replacement
Type (4 Cylinder Inner Pressure Type)
Demineralizer Ion Exchange Resin
(18 Liter Specification)
Max. Machining Current 40 A (60A : Option)
Power Supply Input Specification AC200V 50/60 Hz
NC Unit Multi-tasking OS,
K-SMC-LINK Method (M4-LINK)
User’s Memory Capacity Editing: 100,000 blocks
Saving: 30 M bytes
Memory Device SSD, Dedicated USB Memory
Input Method Dedicated USB Memory, Multi-touch Panel,
Keyboard, LAN
Display Method 19-inch TFT-LCD
Printable Characters Kanji (JIS Level 1 Kanji Characters),
Alphabet, Numerical Characters, etc..
Keyboard Standard 101 Keyboard, Function Key
Position Command Method Incremental / Absolute in Combination
Input Range ±999999.999/±99999.9999
/±9999.99999/±999.999999 (Changeable)
Electric Discharge Machining Condition 10,000 conditions can be registered Registration Function
(C0000 to C9999)
Offset Function 10,000 conditions can be registered
(H0000 to H9999)
Program Sequence Number Specification Setting from N000000000 to N999999999
Coordinate Value 60
Number of Simultaneously Controlled Axes 4 Axes Max (SPW-E: 8 Axes Max *3)
Min. Command Unit 0.001μm
Min. Drive Unit 0.01 μm (X, Y, U, V Axes)
Max. Feed Speed X, Y-axis: Max. 3 m/min, Z-axis: 2 m/min
Position Detection Method Full Closed Loop (Linear Scale)
Drive System Linear Motor (X, Y, U, V Axes)
Drive Mechanism Linear Motor
Various Compensation Pitch Error, Plane Pitch Error, Torque and
Torsion Compensation for Each Axis.
Workpiece Inclination and Workpiece
Distortion Compensation.
Graphics Function XY, YZ and XZ Planes, Drawing while
Machining, Machining Position, 3-dimensional
Machining, Zoom In, Zoom Out, Rotation,
Background Drawing, etc.
*1 Less than ø0.05 mm to ø 0.1 mm is optional.
*2 Electric capacity when ø 0.2 mm wire is used.
*3 SPW-E maximum of 8 axis specification is available for
AL400P/AL400G/ALN400G, AL600P/AL600G/ALN600G.

ALN400Q "i Groove Edition" NEW!!

Linear Motor Drive /High Speed & High Precision Wire-cut EDM

First in the world ! Wire Rotation Mechanism "i groove"
Achieving the superlative performance with in-house developed core technologies.



Main Features

More efficient and environmentally friendly finishing of thick plate workpieces.

Wire Rotation Mechanism "i groove"
Applying rotation to the wire during finishing reduces wire consumption and allows a new wire surface to be constantly used for finishing from the top to the bottom of the workpiece.
This is especially suited to finishing thick plate workpieces. It offers innovative machining performance including stable machining dimensions, improvement of surface scoring, and reduced wire consumption.
New groove and step machining function "Stepcut"
It permits machining at the same speed as under standard conditions while significantly improving the accuracy and range of applications when machining shapes with rapidly changing material thickness, such as stepped shapes.

Latest Electrical Discharge Technology for Rapid and Accurate Machining

Sodick has been working for many years to develop the world's best wire-cut electric discharge machines. The AL Series "i Groove Edition" offers flexible control from high peak currents for efficient rough machining to ultra-fine discharge pulses for micro finishing.
In addition, The Sodick linear motor drive is a non-contact system that eliminates the need for ball screws. It is maintenance-free and maintains its initial accuracy almost indefinitely, with no drop off in machine accuracy due to ball screw wear throughout the life of the machine (10 years or more).

Temperature-synchronized machine

All models in the series are equipped as standard with the AIM (AI Maintenance) environmental temperature diagnosis function and TH COM thermal displacement correction function that can handle everything from high-accuracy to rough temperature environments, in addition to a logging function and temperature display of the machine surroundings.
"The newly designed service tank provides a more stable machining environment and improves ease-of-maintenance.
The new service tank has a three-tank structure that completely separates fresh water and the machining fluid after use.
It prevents sludge contamination during machining and provides a more ideal machining environment."
A digital sensor has been newly installed to constantly monitor the filter pressure data and display an alert when filter replacement is necessary.
This allows the operator to machine with confidence and to estimate when filter replacement is due by checking the filter pressure trends on a graph.


Product Specifications

Technical Specifications
Machining Tank Inner Dimensions (W x D) 1,050 x 840 mm
X Axis Travel 600 mm
Y Axis Travel 400 mm
Z Axis Travel 350 mm
U x V Axis Travel 150 x 150 mm
Max. Taper Angle ± 25° (Thickness: 130 mm)
Max. Workpiece Size (W x D x H) 800 x 570 x 340 (Flush Machining) mm
800 x 570 x 280 (Immersion Machining) mm
Max. Weight of Workpiece 1,000 kg
Wire Diameter ø0.1 to ø0.3 mm
Wire Tension 3 to 23 N
Max. Wire Feed Speed Max. 420 mm/sec
Distance from Floor to Table Upper Surface 995 mm
Total Electric Capacity 3-phase 50/60 Hz 13 kVA*2
External Dimensions (W x D x H) 870 x 2,605 x 2,179 mm
Weight (Empty) 500 kg
Capacity 1001 liter
Machining Fluid Filtration Method Paper Filter Replacement
Type (4 Cylinder Inner Pressure Type)
Demineralizer Ion Exchange Resin (18 Liter Specification)
Max. Machining Current 40 A (60A : Option)
Power Supply Input Specification AC200V 50/60 Hz
NC Unit Multi-tasking OS,
K-SMC-LINK Method (M4-LINK)
User’s Memory Capacity Editing: 100,000 blocks
Saving: 30 M bytes
Memory Device SSD, Dedicated USB Memory
Input Method Dedicated USB Memory, Multi-touch Panel,
Keyboard, LAN
Display Method 19-inch TFT-LCD
Printable Characters Kanji (JIS Level 1 Kanji Characters),
Alphabet, Numerical Characters, etc..
Keyboard Standard 101 Keyboard, Function Key
Position Command Method Incremental / Absolute in Combination
Input Range ±999999.999/±99999.9999
/±9999.99999/±999.999999 (Changeable)
Electric Discharge Machining Condition 10,000 conditions can be registered Registration Function
(C0000 to C9999)
Offset Function 10,000 conditions can be registered
(H0000 to H9999)
Program Sequence Number Specification Setting from N000000000 to N999999999
Coordinate Value 60
Number of Simultaneously Controlled Axes 4 Axes Max (SPW-E: 8 Axes Max *3)
Min. Command Unit 0.001μm
Min. Drive Unit 0.01 μm (X, Y, U, V Axes)
Max. Feed Speed X, Y-axis: Max. 3 m/min, Z-axis: 2 m/min
Position Detection Method Full Closed Loop (Linear Scale)
Drive System Linear Motor (X, Y, U, V Axes)
Drive Mechanism Linear Motor
Various Compensation Pitch Error, Plane Pitch Error, Torque and
Torsion Compensation for Each Axis.
Workpiece Inclination and Workpiece
Distortion Compensation.
Graphics Function XY, YZ and XZ Planes, Drawing while
Machining, Machining Position, 3-dimensional
Machining, Zoom In, Zoom Out, Rotation,
Background Drawing, etc.
The dielectric chillers on Sodick machines contain either
fluorinated greenhouse gas R410A or R407C.
*1 Please select the appropriate clamping chuck for your system.
· Selection: LN2/LN20. Please consult sales representatives for more details.
· Specifications are subject to change without prior notice due to continual research and development.

ALN600Q "i Groove Edition" NEW!!

Linear Motor Drive /High Performance Wire-cut EDM

First in the world ! Wire Rotation Mechanism "i groove"
Achieving the superlative performance with in-house developed core technologies.



Main Features

More efficient and environmentally friendly finishing of thick plate workpieces.

Wire Rotation Mechanism "i groove"
Applying rotation to the wire during finishing reduces wire consumption and allows a new wire surface to be constantly used for finishing from the top to the bottom of the workpiece.
This is especially suited to finishing thick plate workpieces. It offers innovative machining performance including stable machining dimensions, improvement of surface scoring, and reduced wire consumption.
New groove and step machining function "Stepcut"
It permits machining at the same speed as under standard conditions while significantly improving the accuracy and range of applications when machining shapes with rapidly changing material thickness, such as stepped shapes.

Latest Electrical Discharge Technology for Rapid and Accurate Machining

Sodick has been working for many years to develop the world's best wire-cut electric discharge machines. The AL Series "i Groove Edition" offers flexible control from high peak currents for efficient rough machining to ultra-fine discharge pulses for micro finishing.
In addition, The Sodick linear motor drive is a non-contact system that eliminates the need for ball screws. It is maintenance-free and maintains its initial accuracy almost indefinitely, with no drop off in machine accuracy due to ball screw wear throughout the life of the machine (10 years or more).

Temperature-synchronized machine

All models in the series are equipped as standard with the AIM (AI Maintenance) environmental temperature diagnosis function and TH COM thermal displacement correction function that can handle everything from high-accuracy to rough temperature environments, in addition to a logging function and temperature display of the machine surroundings.
"The newly designed service tank provides a more stable machining environment and improves ease-of-maintenance.
The new service tank has a three-tank structure that completely separates fresh water and the machining fluid after use.
It prevents sludge contamination during machining and provides a more ideal machining environment."
A digital sensor has been newly installed to constantly monitor the filter pressure data and display an alert when filter replacement is necessary. This allows the operator to machine with confidence and to estimate when filter replacement is due by checking the filter pressure trends on a graph.


Product Specifications

Technical Specifications
Machining Tank Inner Dimensions (W x D) 1,050 x 840 mm
X Axis Travel 600 mm
Y Axis Travel 400 mm
Z Axis Travel 350 mm
U x V Axis Travel 150 x 150 mm
Max. Taper Angle ± 25° (Thickness: 130 mm)
Max. Workpiece Size (W x D x H) 800 x 570 x 340 (Flush Machining) mm
800 x 570 x 280 (Immersion Machining) mm
Max. Weight of Workpiece 1,000 kg
Wire Diameter ø0.1 to ø0.3 mm
Wire Tension 3 to 23 N
Max. Wire Feed Speed Max. 420 mm/sec
Distance from Floor to Table Upper Surface 995 mm
Total Electric Capacity 3-phase 50/60 Hz 13 kVA*2
External Dimensions (W x D x H) 870 x 2,605 x 2,179 mm
Weight (Empty) 500 kg
Capacity 1001 liter
Machining Fluid Filtration Method Paper Filter Replacement
Type (4 Cylinder Inner Pressure Type)
Demineralizer Ion Exchange Resin (18 Liter Specification)
Max. Machining Current 40 A (60A : Option)
Power Supply Input Specification AC200V 50/60 Hz
NC Unit Multi-tasking OS,
K-SMC-LINK Method (M4-LINK)
User’s Memory Capacity Editing: 100,000 blocks
Saving: 30 M bytes
Memory Device SSD, Dedicated USB Memory
Input Method Dedicated USB Memory, Multi-touch Panel,
Keyboard, LAN
Display Method 19-inch TFT-LCD
Printable Characters Kanji (JIS Level 1 Kanji Characters),
Alphabet, Numerical Characters, etc..
Keyboard Standard 101 Keyboard, Function Key
Position Command Method Incremental / Absolute in Combination
Input Range ±999999.999/±99999.9999
/±9999.99999/±999.999999 (Changeable)
Electric Discharge Machining Condition 10,000 conditions can be registered Registration Function
(C0000 to C9999)
Offset Function 10,000 conditions can be registered
(H0000 to H9999)
Program Sequence Number Specification Setting from N000000000 to N999999999
Coordinate Value 60
Number of Simultaneously Controlled Axes 4 Axes Max (SPW-E: 8 Axes Max *3)
Min. Command Unit 0.001 μm
Min. Drive Unit 0.01 μm (X, Y, U, V Axes)
Max. Feed Speed X, Y-axis: Max. 3 m/min, Z-axis: 2 m/min
Position Detection Method Full Closed Loop (Linear Scale)
Drive System Linear Motor (X, Y, U, V Axes)
Drive Mechanism Linear Motor
Various Compensation Pitch Error, Plane Pitch Error, Torque and
Torsion Compensation for Each Axis.
Workpiece Inclination and Workpiece
Distortion Compensation.
Graphics Function XY, YZ and XZ Planes, Drawing while
Machining, Machining Position, 3-dimensional
Machining, Zoom In, Zoom Out, Rotation,
Background Drawing, etc.
*1 Less than ø0.05 mm to ø 0.1 mm is optional.
*2 Electric capacity when ø 0.2 mm wire is used.
*3 SPW-E maximum of 8 axis specification is available for
AL400P/AL400G/ALN400G, AL600P/AL600G/ALN600G.

ALN600GH

High-Performance Wire EDM

The ALN600GH features an automatic drop-tank for easy part setup, as well as Sodick’s latest SmartPulse Wire (SPW) Control. Onboard “Intelligent Qvic” programming software is included for easy programming from solid models or dxf files. All Sodick Wire and Sinker EDMs utilize Sodick’s patented Rigid Linear Motor for non-contact axis movement free from friction, wear, and backlash. Since 2006, Sodick machines come with a 10 year positioning accuracy guarantee, ensuring that new ALN machines will maintain the positioning accuracy identified on their factory inspections for the next 10 years.



Main Features

Rigid Linear Motor Drives

Sodick’s ALN600GH rigid linear motor driven, high precision Wire EDM machine features increased Z capacity up to nearly 20 inches and new user-friendly EDM technology which further enhances productivity and EDM precision. The machine’s rigid linear motor axes drives are coupled with glass scales on the X, Y, U and V axes which ensure precision cutting and positioning accuracy. Sodick’s X, Y, U and V linear motor drives have no backlash and are backed by Sodick’s 10-Year Positioning Accuracy Guarantee. Sodick currently manufactures and delivers only rigid linear motor driven machines; proving the unrivaled reliability of Sodick's own rigid linear motor technology. Sodick's rigid linear motors have the optimum flat design. The machine castings support the linear motor to achieve ideal linear performance, the ultimate design for precision machining.

CNC Smart Control - SPW

The new Sodick Control SPW (Smart Pulse Wire) has many attractive features, from the use of the industry standard Windows 7 operating system, to an enhanced, 19 inch horizontal TFT multi-touch screen. The ALN control design streamlines the former tablet and classic control modes into a single work screen with easy-access functions. The streamlined design also improves control processing speed, for a highly responsive user experience
The NC programs are supported with 2D and 3D graphics. Maintenance screens show the status of the machine and remote access is possible for maintenance and supervision.

Smart Pulse Generator

The Smart Pulse Generator reduces the number of cuts necessary to achieve the required accuracy and surface finish. This reduction in time translates directly into a financial advantage.

Intelligent Q³vic

Intelligent Q³vic EDW technology allows the importation of 3D CAD files and is standard with the ALN-G Series. This automatic programming system detects the profile of a workpiece that can be machined with Wire EDM and extracts the machining contour. Significant savings in programming hours are possible thanks to this advanced software.

Sodick Motion Controller

The Sodick Motion Controller (K-SMC), accurately controls the high-speed and precise linear motor drive movements through commands from the NC unit. The K-SMC was heavily researched and developed to bring about new technical innovations to electrical discharge machining. Developed in Silicon Valley, CA, the K-SMC accurately controls high-speeds, rapid acceleration and precise positioning.


Product Specifications

Technical Specifications
X Axis Travel 600 mm
Y Axis Travel 400 mm
Z Axis Travel 500 mm
U x V Axis Travel 150 x 150 mm
Wire Diameter Range (min ~ max) 0.1 ~ 0.3 mm
Work Tank Dimensions (W x D) 41.34” x 27.95” (1,050 x 710 mm)
Maximum Work-piece Weight 1,000 kg
Distance From Floor to Table Top 995 mm
Machine Tool Dimensions 2,820 x 2,685 x 2,646 mm
Machine Weight 4,500 kg
Standard Features
10-Year Positioning Guarantee
Rigid Linear Motor Drives (X, Y, U and V axes)
Absolute Linear Scale (X, Y, U and V)
2 Year Warranty Standard
SPW (Smart Pulse Wire Control)
Tablet Style Control Features
19" LCD Touch Panel Screen
Smart Pulse Generator
Digital Pika-W Plus - Super Finishing Circuit
Advanced Step Machining
High Precision Positioning Sensor FT-II
Ceramic Work-Zone
FJ (Fixed Jet) High Speed AWT
High Quality Design
Rigid Cast Construction
Stable Platform and Environment
3 Sided Rise/Fall Worktank
Intelligent Q³vic EDW - Automatic Programming System
Barrelless Control II
TMP II Surface Finishing Circuit
K-SMC Motion Controller
Three Part Filtration System
Slide Plate Lubrication
Advanced Corner Control
Energy Saving Circuit
Dielectric Cooling Unit
Heart NC - CAD-CAM System (on-board)
Ion-Exchange Unit
Windows 10 Operating Software Platform
Automatic Wire Tension Servo Control System
Automatic Voltage Regulator
Four Sided Clamping Table
Z-Axis Automatic Fluid Level Control
Voltage Booster
Options
SPW-E Control - Up to 8 Axis Simultaneous Control - Required for Multi-Axis
Simultaneous "Turn and Burn" Capability
Jumbo Wire Feeder 110 lbs (50 kg)
Integrated 'Jumbo' Wire Feeder 44 lbs (20 kg)
L-Cut Wire Chopper - Processes Wire for Convenient Storage
HTP Circuit - High Voltage Circuit that Improves Machining Efficiency when
Cutting PCD and Similar Materials
Taper Flex - Hardware and Software to enable the Machining of Precision Taper
Angles (Up to 22 and 45 Degree Options Available, Contact Sodick for Details)
UPS (Uninterrupted Power Supply)
SodickCare +2 or +4 Extended Warranty

ALC600GH

Smart Linear, Smart Pulse, Premium

Achieving the superlative performance with in-house developed core technologies


Main Features

4-axis linear motor drive

Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor

New Power Supply Unit & New Machining Circuit

Has a 19-inch horizontal type touch panel, realizing the most up-to-date man-machine interface and also ensuring ease of viewing and ease of use. This machine is standardly equipped with the "barrel-free effect control II" which greatly reduces the barrel amount during machining, and "TMP Control II" which improves the surface roughness of the second cut and realizes high speed finish machining.

Improves Operability and productivity

The operability is improved with the standardly equipped ceramic work stand, square shaped table, automatic three sides up and down type processing tank and Z-axis following automatic liquid level control function. The high speed automatic wire connection unit (FJ-AWT) and the intermediate liquid level control function enables unattended high precision machining can be performed, which improves productivity.


Product Specifications

Technical Specifications
X/Y/Z axis travel (mm) 400 x 300 x 250
U/V axis travel (mm) 150 x 150
Taper angle (Work. height 130mm) ±25°
Work tank dimensions (W x D, mm) 850 x 610
Max. workpiece weight (kg) 500
Wire diameter (mm) Ø 0.1 ~ Ø 0.3
Wire tension (N) 3 ~ 23
Max. wire speed (mm/sec) 420
Max. wire bobbin (kg) 20
Distance from floor to table top (mm) 995
Machine tool dimensions (W x D x H, mm) 2,190 x 2,590 x 2,230
Machine tool weight (kg) 3,400
Total power input 3-phases 50/60Hz 13KVA
External Dimensions (W x D x H) 775 x 2,250
Weight (Empty) 450 kg
Dielectric fluid De-ionized Water
Capacity 790 liter
Dielectric fluid filtration system 4 Replaceable paper filters
(internal pressure
*1 The diameter of the wire of AWT is φ0.3.

AL800P NEW!!

Linear Motor Drive /High-speed/Ultra-precision Large-size Wire-cut EDM

Novel Construction and System That Minimize Thermal Displacement.
Achieves Higher-precision and Faster Machining of Large Parts and Molds.



Main Features

4-Axis (XYUV) Linear Motor Drive

High-performance linear motors developed and manufactured by Sodick are adopted for the four XYUV axes. They can maintain accurate axis movement with no backlash semi-permanently, something that is impossible with conventional ball screw drive methods. The high response and high tracking performance that are features of linear motors achieve accurate position control and excellent discharge characteristics during machining.

High Rigidity Construction and Precision Thermal Compensation System

The AL800P adopts a high rigidity construction supported by the ultra-precise roller guide as well as featuring a machining fluid circulation system for major structural components. In addition, a newly developed high-precision thermal compensation system and automatic temperature control by a high-performance inverter cooler minimize the thermal displacement during high-precision machining of large workpieces.

Latest "SPW Power Supply" NC Unit and New Machining Circuits

A variety of the latest technologies for highspeed, high-precision, and high-quality machining, such as Digital-PIKA-W Plus, TMP control II, Barrel-free Effect Control II, new tension servo function, and automatic float control are installed as standard to achieve stable high-efficiency machining with the minimum number of cuts. The horizontal 19-inch touch panel screen offers advanced operability and functionality.


Product Specifications

Technical Specifications
Work tank inner dimensions W x D (mm) 1410 x 1110
Axis stroke X x Y x Z (mm) 800 x 600 x 250
U x V axis travel (mm) 150 x 150
Max. taper angle ± 25° (plate thickness: 130 mm)
Max. workpiece dimensions
(During flushing machining)W x D x H (mm)
1250 x 1020 x 240
Max. weight of workpiece
(During flushing machining)(kg)
1500
Wire electrode diameter (mm) 0.1 ~ 0.3
Wire tension (N) 3 ~ 23
Maximum wire feed rate (mm/sec) 420
Distance from floor surface to
upper surface of table (mm)
995
Machine tool dimensions W x D x H (mm) 3300 x 3650 x 2415
Machine installation dimensions W x D (mm) 4580 x 5050
Total unit weight(kg) 5750
Total power input 3-phase, 50/60 Hz, 13 kVA

AL800G

Linear Motor Drive /High Speed & High Performance/Large-size Wire-cut EDM

Achieving the superlative performance with in-house developed core technologies Advanced Smart Pulse & Advanced Smart Linear



Main Features

4-axis linear motor drive

Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor

New Power Supply Unit& New Machining Circuit

Providing the improved visibility and operability with the latest man-machine interface achieved by the 19" horizontal touch-panel. This machine is standardly equipped with the "barrel-free effect control Ⅱ" which greatly reduces the barrel amount during machining, and "TMP Control Ⅱ" which improves the surface roughness of the second cut and realizes high speed finish machining.

Large and Thick Workpiece Machining

The AL800G/ALN800G supports a 500mm workpiece thcickness machining standard. It equipped with the automatic vertically sliding door, the "O-shape" work-stand, and ceramics made stand-bases. The high speed automatic wire threading unit (FJ-AWT) and the built-in 20kg wire feeder enables unattended high speed and high precision machining.


Product Specifications

Technical Specifications
Work tank inner dimensions (W x D) 1410 x 1110 mm
X axis travel 800 mm
Y axis travel 600 mm
Z axis travel 500 mm
U x V axis travel 200 x 200 mm
Max. taper angle ± 25° (Thickness: 130 mm)
Max. workpiece size (W x D x H) 1250 x 1020 x 500 mm
Max. weight of workpiece 3000 kg
Wire diameter φ 0.1 - φ 0.3 mm
Wire tension 3 - 23 N
Wire feed speed Max. 420 mm/sec
Distance from floor to table top 995 mm
Machine tool dimensions (W x D x H)*1 3395 x 3640 x 2780 mm
Machine installation dimensions (W x D) 4675 x 5050 mm
Machine tool weight*2 6000 kg
Total power input 3-phase 50/60 Hz 13 kVA*3
External dimensions (W x D) 1505 x 3060 mm
Weight (empty) 800 kg
Capacity 1500 liter
Filteration method Replaceable paper filter
(Internal pressure 4-cylinder type)
Deionizer Ion-exchange resin (18 liter)
Max. machining current 40 A ( 60A: Option )
Power requirement AC200 V 50/60 Hz
NC unit Multi-tasking OS, K-SMC-LINK method (M4-LINK)
User memory capacity Editing: 100,000 blocks,
saving: 30MB -
Memory device SSD, dedicated USB memory
Input format Dedicated USB memory, multi-touch
panel, keyboard, LAN
Display type 19 inch TFT-LCD
Character set Kanji (JIS Level 1 Kanji characters),
alphabet, numerical characters, etc.
Keyboard Standard 101-key, function key
Positioning command Incremental and absolute
Max. input command ±999999.999/±99999.9999/±9999.99999
/±999.999999 (switchable)
Machining conditions storage capacity 10000 conditions (C0000 - C9999)
Offset settings storage capacity 10000 conditions (H0000 - H9999)
Program sequence number assignment N000000000 to N999999999
Number of coordinates 60
Simultaneous control axes Max. 4 axes (SPW-E : Max. 8 axes)
Min. command unit 0.001μm
Min. drive unit 0.01μm (X, Y, U, V axes)
Max. feed rate X, Y axis: max. 3 m/min, Z axis: 2 m/min
Position detection Full closed loop (linear scale)
Drive mechanism Linear motor (X, Y, U, V axes)
Compensations Pitch error compensation, plane pitch error compensation, torque
compensation, twist compensation,
workpiece alignment compensation,
workpiece distortion compensation for
each axis
Graphics XY , YZ , ZX plane, 3D, graphics
drawing during machining, enlarge,
shrink, rotation, background graphics drawing
*1 Including Power Supply Unit, Dielectric Tank, and Wire Bucket.
*2 Including Power Supply Unit.
*3 Electric capacity when a φ 0.2 mm wire is used.

ALC800G

The Best just got Better: Smart Linear, Smart Pulse

Based on the mindset of "assisting in the product development of customers", Sodick has listened to the demands of customers no matter how insignificant, and has challenged and overcome every difficult technical issue to solve problems. The company has also maintained the stance where Sodick even develop products in-house to solve a problem, if its solution is not available anywhere in the world.


Main Features

NC Unit

Sodick develops and manufactures user-friendly NC units easily operable by anyone, and yet provides supreme machining performance. In order to achieve ultra precision machining, a built-in artificial intelligence is combined with state-of-the-art electrical-discharge machining technologies, which precisely controls the drive system through K-SMC, electrical discharge power supply, and wire running syst

Electrical Discharge Power Supply Unit

The unit contains numerous circuits to optimally control electrical discharge energy. High speed, quality rough cutting essential for finishing is controlled through an optimum discharge pulse to achieve superior surface and form accuracy. The electrical discharge power supply unit containing these circuits is based on energy saving design that works to minimise wasteful energy loss.

Linear Motor

Sodick's linear motor provides high acceleration and positioning accuracy without backlash, by a direct drive mechanism without any single command delay. The excellent dynamic response, stable machining accuracy and its performance does not deteriorate over long periods of operation without any maintenance.


Product Specifications

Technical Specifications
X Axis travel 800 mm
Y Axis travel 600 mm
Z Axis travel 500 mm
U x V axis travel 200 x 200 mm
Taper angle (Work. thickness 130mm) ±25°
Work tank dimensions (W x D) 1,410 x 1,110 mm
Max. workpiece weight 3,000 kg
Wire diameter 0.1 ~ 0.3 mm
Wire tension 3 ~ 23N
Max. wire speed 420 mm/sec
Distance from floor to table top 995 mm
Machine tool dimensions (W x D x H) 3,395 x 3,640 x 2,780 mm
Machine installation dimensions 4,675 x 5,050 mm
Machine tool weight 6,000 kg
Total power input 3-phases 50/60Hz 13KVA
External dimensions (W x D) 1505 x 3060 mm
Weight (empty) 800 kg
Capacity 1500 liter
Filteration method Replaceable paper filter
(Internal pressure 4-cylinder type)
Deionizer Ion-exchange resin (18 liter)

AL800GH

Linear Motor Drive /High Speed & High Performance/Large-size Wire-cut EDM

Achieving the superlative performance with in-house developed core technologies Advanced Smart Pulse & Advanced Smart Linear


Main Features

4-axis linear motor drive

Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor

New Power Supply Unit& New Machining Circuit

Providing the improved visibility and operability with the latest man-machine interface achieved by the 19" horizontal touch-panel.
This machine is standardly equipped with the "barrel-free effect control Ⅱ" which greatly reduces the barrel amount during machining, and "TMP Control Ⅱ" which improves the surface roughness of the second cut and realizes high speed finish machining.

Large and Thick Workpiece Machining

The AL800G/ALN800G supports a 500mm workpiece thcickness machining standard. It equipped with the automatic vertically sliding door, the "O-shape" work-stand, and ceramics made stand-bases.
The high speed automatic wire threading unit (FJ-AWT) and the built-in 20kg wire feeder enables unattended high speed and high precision machining.


Product Specifications

Technical Specifications
Max. workpiece dimensions (W x D x H) 1,250 x 1,020 x 800(Flushing)mm
1,250 x 1,020 x (Submerged)mm
Max workpiece weight 3,000 kg
Work tank dimensions (W x D) 1,500 x 1,040 mm
X axis travel 800 mm
Y axis travel 600 mm
Z axis travel 720(80~800) mm
U axis x V axis travel 200 x 200 mm
Taper angle
(At workpiece thickness of 130mm)
仮±25°
Wire diameter 仮φ0.1~φ0.3 mm
Wire feed speed (max) 420 mm/sec
Wire tension 3~23 N
Machining method Flushing,Submerged
Distance from floor to table top 1,150 mm
Wire bobbin weight 8 kg
Machine dimensions (W x D x H)
(Including power supply, supply tank,and wire bucket)
仮3,300 x 3,500 x 3,400 mm
Machine installation space (W x D) 仮4,580 x 4,950 mm
Machine weight (including power supply) 未 kg
Air flow 0.5 MPa 30 NL/min
Total power input 3-phases 50/60Hz 13 KVA
External dimensions (W x D) 仮1,500x3060 mm
Weight (empty) kg
Dielectric tank capacity 仮2,300 liter
Dielectric fluid filtration method 4 replaceable paper filter
(Internal-pressure type)
Deionizer Ion-exchange resin(18-lit.type)

ALC800GH

Linear Motor Drive /High Speed & High Performance/Large-size Wire-cut EDM

Achieving the superlative performance with in-house developed core technologies Advanced Smart Pulse & Advanced Smart Linear


Main Features

4-axis linear motor drive

Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor

New Power Supply Unit& New Machining Circuit

Providing the improved visibility and operability with the latest man-machine interface achieved by the 19" horizontal touch-panel.
This machine is standardly equipped with the "barrel-free effect control Ⅱ" which greatly reduces the barrel amount during machining, and "TMP Control Ⅱ" which improves the surface roughness of the second cut and realizes high speed finish machining.

Large and Thick Workpiece Machining

The AL800G/ALN800G supports a 500mm workpiece thcickness machining standard. It equipped with the automatic vertically sliding door, the "O-shape" work-stand, and ceramics made stand-bases.
The high speed automatic wire threading unit (FJ-AWT) and the built-in 20kg wire feeder enables unattended high speed and high precision machining.


Product Specifications

Technical Specifications
X Axis travel 800 mm
Y Axis travel 600 mm
Z Axis travel 730 (80 ~ 810) mm
U x V axis travel 200 x 200 mm
Taper angle (Work. thickness 130mm) ±30°
Work tank dimensions (W x D) 1,312 x 1,058 mm
Max. workpiece weight 3,000 kg
Wire diameter 0.2 ~ 0.3 mm
Wire tension 3 ~ 23N
Max. wire speed 420 mm/sec
Distance from floor to table to 1150 mm
Machine tool dimensions (W x D x H) 4,200 x 3,590 x 3,390 mm
Machine installation dimensions 5,500 x 4,600 mm
Machine tool weight 6,600 kg
Total power input 3-phases 50/60Hz 13KVA
External dimensions (W x D) 2,280 x 3,150 mm
Empty weight 1,100 kg
Capacity 2,500 lit
Dielectric fluid filtration system 4 replaceable paper filter
(Internal-pressure type)
Deionizer Ion-exchange resin (18-lit.type)

ALN800G

Linear Motor Drive /High Speed & High Performance/Large-size Wire-cut EDM

Achieving the superlative performance



Main Features

4-axis linear motor drive

Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor.

New Power Supply Unit & New Machining Circuit

Providing the improved visibility and operability with the latest man-machine interface achieved by the 19" horizontal touch-panel.
This machine is standardly equipped with the "barrel-free effect control Ⅱ" which greatly reduces the barrel amount during machining, and "TMP Control Ⅱ" which improves the surface roughness of the second cut and realizes high speed finish machining.

Large and Thick Workpiece Machining

The AL800G/ALN800G supports a 500mm workpiece thcickness machining standard. It equipped with the automatic vertically sliding door, the "O-shape" work-stand, and ceramics made stand-bases. The high speed automatic wire threading unit (FJ-AWT) and the built-in 20kg wire feeder enables unattended high speed and high precision machining.


Product Specifications

Technical Specifications
Work tank inner dimensions (W x D) 1410 x 1110 mm
X axis travel 800 mm
Y axis travel 600 mm
Z axis travel 500 mm
U x V axis travel 200 x 200 mm
Max. taper angle ± 25° (Thickness: 130 mm)
Max. workpiece size (W x D x H) 1250 x 1020 x 500 mm
Max. weight of workpiece 3000 kg
Wire diameter φ 0.1 - φ 0.3 mm
Wire tension 3 - 23 N
Wire feed speed Max. 420 mm/sec
Distance from floor to table top 995 mm
Machine tool dimensions (W x D x H)*1 3310 x 3360 x 2695 mm
Machine installation dimensions (W x D) 4590 x 4760 mm
Machine tool weight*2 5500 kg
Total power input 3-phase 50/60 Hz 13 kVA*3
External dimensions (W x D) 1505 x 3060 mm
Weight (empty) 800 kg
Capacity 1500 liter
Filteration method Replaceable paper filter
(Internal pressure 4-cylinder type)
Deionizer Ion-exchange resin (18 liter)
Max. machining current 40 A ( 60A: Option )
Power requirement AC200 V 50/60 Hz
NC unit Multi-tasking OS, K-SMC-LINK method (M4-LINK)
User memory capacity Editing: 100,000 blocks,
saving: 30MB -
Memory device SSD, dedicated USB memory
Input format Dedicated USB memory, multi-touch
panel, keyboard, LAN
Display type 19 inch TFT-LCD
Character set Kanji (JIS Level 1 Kanji characters),
alphabet, numerical characters, etc.
Keyboard Standard 101-key, function key
Positioning command Incremental and absolute
Max. input command ±999999.999/±99999.9999/±9999.99999
/±999.999999 (switchable)
Machining conditions storage capacity 10000 conditions (C0000 - C9999)
Offset settings storage capacity 10000 conditions (H0000 - H9999)
Program sequence number assignment N000000000 to N999999999
Number of coordinates 60
Simultaneous control axes Max. 4 axes (SPW-E : Max. 8 axes)
Min. command unit 0.001μm
Min. drive unit 0.01μm (X, Y, U, V axes)
Max. feed rate X, Y axis: max. 3 m/min, Z axis: 2 m/min
Position detection Full closed loop (linear scale)
Drive mechanism Linear motor (X, Y, U, V axes)
Compensations Pitch error compensation, plane pitch error compensation, torque
compensation, twist compensation
, workpiece alignment compensation,
workpiece distortion compensation for each axis
Graphics XY , YZ , ZX plane, 3D, graphics
drawing during machining, enlarge,
shrink, rotation, background graphics drawing
*1 Including Power Supply Unit, Dielectric Tank, and Wire Bucket.
*2 Including Power Supply Unit.
*3 Electric capacity when a φ 0.2 mm wire is used.

ALN800GH

Linear Motor Drive /High Speed & High Performance/Large-size Wire-cut EDM

Achieving the superlative performance



Main Features

4-axis linear motor drive

Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor.

New Power Supply Unit & New Machining Circuit

Providing the improved visibility and operability with the latest man-machine interface achieved by the 19" horizontal touch-panel.
This machine is standardly equipped with the "barrel-free effect control Ⅱ" which greatly reduces the barrel amount during machining, and "TMP Control Ⅱ" which improves the surface roughness of the second cut and realizes high speed finish machining.

Large and Thick Workpiece Machining

The AL800G/ALN800G supports a 500mm workpiece thcickness machining standard. It equipped with the automatic vertically sliding door, the "O-shape" work-stand, and ceramics made stand-bases. The high speed automatic wire threading unit (FJ-AWT) and the built-in 20kg wire feeder enables unattended high speed and high precision machining.


Product Specifications

Technical Specifications
Max. workpiece dimensions (W x D x H) 1,300 x 1,040 x 800 mm
Max workpiece weight 3,000 kg
Work tank dimensions (W x D) 1,312 x 1,058 mm
X axis travel 800 mm
Y axis travel 600 mm
Z axis travel (Open height) 730(80~810) mm
U axis x V axis travel 200 x 200 mm
Taper angle
(At workpiece thickness of 140mm)
±30 °
AWT Type FJ-AWT
Upper Guide Type FJ-AWT Type-A
Lower Guide Type FJ-AWT Type-A
Wire diameter φ0.2~φ0.3 mm
Wire feed speed (max) 420 mm/sec
Wire tension 3~23 N
Machining method Flushing,Submerged
Distance from floor to table top 1,150 mm
Wire bobbin weight Max. weight 20 Kg mm
Max. width 220 Kg mm
Machine dimensions (W x D x H)
(Including power supply, supply tank,and wire bucket)
4,120 x 3,500 x 3,365 mm
Machine installation space (W x D) 5,450 x 4,500 mm
Machine weight
(including power supply and CNT)
6,600 kg
Air flow 0.5 MPa
30 NL/min
Total power input 3-phases 50/60Hz 13 KVA
External dimensions (W x D) 2,280x3,150
Weight (empty) 1,100 kg
Dielectric tank capacity 2,500 liter
Dielectric fluid filtration method 4 replaceable paper filter
(Internal-pressure type)
Deionizer Ion-exchange resin(18-lit.type)
*1 The diameter of the wire of AWT is φ0.3.

VL400Q

Linear Motor Drive /High Speed Wire-cut EDM

Precision parts machining for Medical, Aerospace and Cutting tools The most reliable linear motor driven Wire-cut EDM Improved surface finish supports variety of machining needs



Main Features

No screw drive system

The no screw drive system, which uses a linear motor and linear scale, is the ideal drive method which maintains high-speed and high response semi-permanently. The initial positioning accuracy can be maintained for years and years; machine operators will everlastingly enjoy the remarkably reliable machining performance.

New power supply unit

The new power supply unit employs "Perfect Active Control" technology. It realizes high-speed processing of discharge control and motion control simultaneously. The "Heart-NC", automatic programming system, is installed standard which allows machining program procedure without experience.

Versatility

The VL series are equipped with many advantageous functions as standard; such as, the advanced corner control system, automatic float control, new high quality surface finish circuit, and more. Moreover, Sodick’s in-house made superior ceramics are adopted standard for precision machining.


Product Specifications

Technical Specifications
Work tank inner dimensions (W x D) 860 x 690 mm
X axis travel 400 mm
Y axis travel 300 mm
Z axis travel 220 mm
U x V axis travel 80 x 80 mm
Max. taper angle ±15° (Thicnkness 120mm)
Max. workpiece size (W x D x H) 830 x 610 x 215 (Flushing)
830 x 610 x 200 (Submerged)
Max. weight of workpiece 500 kg (Flushing)
350 kg (Submerged)
Wire diameter ø0.1 - ø0.3 mm
Wire tension 3 - 23 N
Wire feed rate Max. 420 mm/sec
Distance from floor to table top 900 mm
Machine tool dimensions (W x D x H) 2020 x 2310 x 1990 mm
Machine installation area (W x D) 2700 x 3080 mm
Machine tool weight
(Including power supply unit)
2700 kg
Total power input 3-phase 50/60 Hz 11KVA
External dimensions (W x D x H) 755 x 2200 x 1800 mm
Weight (empty) 380 kg
Capacity 590 liter
Filteration method Replaceable paper filter
Deionizer Ion-exchange resin
Max. machining current 32 A
Power requirement 200/220 V 50/60 Hz
NC unit Multi-tasking OS, K-SMC-LINK method
User’s memory capacity Editing: 100,000 blocks、
Saving: 30 MB
Memory device CF card, dedicated USB memory
Input format Dedicated USB memory, mouse,
keyboard, remote controller
Display type 15 inch TFT-LCD
Character set Alphanumeric and symbols
NC unit Multi-tasking OS, K-SMC-LINK method
Positioning command Incremental and absolute
Max. input command ±999999.999/±99999.9999
/±9999.99999 (switchable)
Machining conditions storage capacity 1000 conditions (C000 to C999)
Offset settings storage capacity 1000 conditions (H000 to H999)
Program sequence number assignment N000000000 to N999999999
Number of coordinates 60
Simultaneous control axes Max. 4 axes
Min. input command 0.1 µm
Min. drive unit 0.1 µm
Max. feed rate Max. 3 m/min
Position detection Full closed loop (linear scale)
Drive mechanism Linear motor
Compensations B acklash and torque compensation
(seperated to each axis)
Graphics XY, YZ, ZX plane, graphics drawing
during machining, background graphics drawing

VL600Q

Linear Motor Drive /High Speed Wire-cut EDM

Precision parts machining for Medical, Aerospace and Cutting tools The most reliable linear motor driven Wire-cut EDM Improved surface finish supports variety of machining needs



Main Features

Five Core Technologies Developed In-House For Achieving The World's Highest Quality Machining

Starting with the development of electrical discharge circuits, Sodick has continued to make untiring efforts in the research and development of advanced EDMs. Sodick’s philosophy has been the pursuit of the highest level of accuracy, speed and versatility of machining in order to provide the highest quality products to its customers.
Sodick's: Power Supply Units, Discharge Units, Linear Motors, Motion Controllers and Fine Ceramic Components have evolved as its five core technologies. These developments have positioned Sodick at the pinnacle of EDM technologies.

NC Power Supply Unit + Discharge Unit

Sodick’s new VL wire EDM series features Sodick's latest ”LN2W series” power supply unit, which is capable of high-speed, high-precision and high-efficiency machining. The outstanding performance of the LN2W series power supply with 1Gb/sec communication technology “Perfect Active Control” making use of a modern in-house designed NC system running on Windows Operating System. The user interface benefits from a 15” colour screen for ease of use and operation.

Linear Motor

The most outstanding features of the Sodick in-house developed and manufactured Linear Motors are high-speed axis motion and quick response, which result from wear-free motion and without the need for old-fashioned ball screws. Conventional drive systems use ball screws to convert the rotational motion of the motor into the linear motion of the axis stroke, leading to the unavoidable deterioration in the response of high speed servo motors due to back-lash and mechanical lost motion. However linear motors directly provide motion to each axis without converting rotational motion of motor to linear movements.

Ceramic Components

The VL Wire EDM Series benefits from the use of ceramics in critical components such as the upper & lower guide assemblies and worktable supports. Ceramics have a low co-efficient of thermal expansion, light in weight, high in rigidity, resistant to aging and excellent electrical insulation properties, therefore an ideal material for a class leading Wire EDM Machine.


Product Specifications

Technical Specifications
X x Y x Z axis travel 600 x 400 x 500 mm
U x V axis travel 90 x 90 mm
Work tank dimensions (W x D) 1,040 x 780 mm
Max workpiece weight 850 kg
Taper angle (at workpiece thickness of 120mm) ±15 °
Wire diameter ø 0.1 ~ ø 0.3 mm
Wire feed speed (max.) 420 mm/sec
Wire tension 3 ~ 23 N
Machining method Flushing / Submerged
Distance from floor to table top 930 mm
Wire bobbin weight 8 kg
Machine dimensions (W x D x H)
(including power supply, supply tank)
3,020 x 2,605 x 2,540 mm
Machine installation space (W x D) 3,700 x 3,395 mm
Machine weight
(including power supply)
3,450 kg
Air flow 0.5 MPa, 30 NL/min
Total power input 3-phases 50/60Hz 11 KVA
External dimensions (W x D x H) 1,360 x 2,430 x 1,810 mm
Dielectric capacity 740 kg
Required amount 1,320 l
Filtration 2 replaceable paper filters
(internal-pressure type)
Deionizer Ion-exchange resin (18-lit.type)
Options
Sodick Rotary Table (WS4P or WS5P)
L-Cut Wire Chopper
44 lb. Wire Spool Feeder
SodickCare +2 or +4 Extended Warranty
PCD Tool Cutting Package with ProfDia.

VL600QH

Linear Motor Drive /High Speed Wire-cut EDM

The VL600QH Wire EDM features Sodick’s Linear Motor Technology. The VL Series is an advanced line of performance Wire EDMs that builds on the technologies of the SL series. The taller VL600QH is well-suited for a wide range of machining applications with even the tallest workpieces.



Main Features

No screw drive system

The no screw drive system, which uses a linear motor and linear scale, is the ideal drive method which maintains high-speed and high response semi-permanently. The initial positioning accuracy can be maintained for years and years; machine operators will everlastingly enjoy the remarkably reliable machining performance.

New power supply unit

The new power supply unit employs "Perfect Active Control" technology. It realizes high-speed processing of discharge control and motion control simultaneously. The "Heart-NC", automatic programming system, is installed standard which allows machining program procedure without experience.

Versatility

The VL series are equipped with many advantageous functions as standard; such as, the advanced corner control system, automatic float control, new high quality surface finish circuit, and more. Moreover, Sodick’s in-house made superior ceramics are adopted standard for precision machining.


Product Specifications

Technical Specifications
Work tank inner dimensions (W x D) 1040 x 780 mm
X axis travel 600 mm
Y axis travel 400 mm
Z axis travel 270 mm
U x V axis travel 80 x 80 mm
Max. taper angle ±15° (Thicnkness 120mm)
Max. workpiece size (W x D x H) 990 x 670 x 265 (Flushing)
990 x 670 x 250 (Submerged)
Max. weight of workpiece 500 kg (Flushing)
350 kg (Submerged)
Wire diameter ø0.1 - ø0.3 mm
Wire tension 3 - 23 N
Wire feed rate Max. 420 mm/sec
Distance from floor to table top 930 mm
Machine tool dimensions (W x D x H) 2620 x 2605 x 2080 mm
Machine installation area (W x D) 3300 x 3395 mm
Machine tool weight
(Including power supply unit)
3040 kg
Total power input 3-phase 50/60 Hz 11KVA
External dimensions (W x D x H) 960 x 2430 x 1810 mm
Weight (empty) 420 kg
Capacity 890 liter
Filteration method Replaceable paper filter
Deionizer Ion-exchange resin
Max. machining current 32 A
Power requirement 200/220 V 50/60 Hz
NC unit Multi-tasking OS, K-SMC-LINK method
User’s memory capacity Editing: 100,000 blocks、
Saving: 30 MB
Memory device CF card, dedicated USB memory
Input format Dedicated USB memory, mouse,
keyboard, remote controller
Display type 15 inch TFT-LCD
Character set Alphanumeric and symbols
NC unit Multi-tasking OS, K-SMC-LINK method
Positioning command Incremental and absolute
Max. input command ±999999.999/±99999.9999
/±9999.99999 (switchable)
Machining conditions storage capacity 1000 conditions (C000 to C999)
Offset settings storage capacity 1000 conditions (H000 to H999)
Program sequence number assignment N000000000 to N999999999
Number of coordinates 60
Simultaneous control axes Max. 4 axes
Min. input command 0.1 µm
Min. drive unit 0.1 µm
Max. feed rate Max. 3 m/min
Position detection Full closed loop (linear scale)
Drive mechanism Linear motor
Compensations B acklash and torque compensation
(seperated to each axis)
Graphics XY, YZ, ZX plane, graphics drawing
during machining, background graphics drawing

VZ400L

Linear Motor Drive /High Speed Wire-cut EDM

Precision parts machining for Medical, Aerospace and Cutting tools The most reliable linear motor driven Wire-cut EDM Improved surface finish supports variety of machining needs


Main Features

Five Core Technologies Developed In-House For Achieving The World's Highest Quality Machining

Starting with the development of electrical discharge circuits, Sodick has continued to make untiring efforts in the research and development of advanced EDMs. Sodick’s philosophy has been the pursuit of the highest level of accuracy, speed and versatility of machining in order to provide the highest quality products to its customers.
Sodick's: Power Supply Units, Discharge Units, Linear Motors, Motion Controllers and Fine Ceramic Components have evolved as its five core technologies. These developments have positioned Sodick at the pinnacle of EDM technologies.

NC Power Supply Unit + Discharge Unit

Sodick’s new VL wire EDM series features Sodick's latest ”LN2W series” power supply unit, which is capable of high-speed, high-precision and high-efficiency machining. The outstanding performance of the LN2W series power supply with 1Gb/sec communication technology “Perfect Active Control” making use of a modern in-house designed NC system running on Windows Operating System. The user interface benefits from a 15” colour screen for ease of use and operation.

Linear Motor

The most outstanding features of the Sodick in-house developed and manufactured Linear Motors are high-speed axis motion and quick response, which result from wear-free motion and without the need for old-fashioned ball screws. Conventional drive systems use ball screws to convert the rotational motion of the motor into the linear motion of the axis stroke, leading to the unavoidable deterioration in the response of high speed servo motors due to back-lash and mechanical lost motion. However linear motors directly provide motion to each axis without converting rotational motion of motor to linear movements.

Ceramic Components

The VL Wire EDM Series benefits from the use of ceramics in critical components such as the upper & lower guide assemblies and worktable supports. Ceramics have a low co-efficient of thermal expansion, light in weight, high in rigidity, resistant to aging and excellent electrical insulation properties, therefore an ideal material for a class leading Wire EDM Machine.


Product Specifications

Technical Specifications
Max. workpiece dimensions (W x D x H) 830 x 610 x 215(Flushing)mm
830 x 610 x 200(Submerged) mm
Max workpiece weight 500(Flushing)kg
350(Submerged kg
Work tank dimensions (W x D) 860 x 690 mm
X axis travel 400 mm
Y axis travel 300 mm
Z axis travel 220 mm
U axis x V axis travel 80 x 80 mm
Taper angle
(At workpiece thickness of 120mm)
±15 °
Wire diameter φ0.1~φ0.3 mm
Wire feed speed (max) 420 mm/sec
Wire tension 3~23 N
Machining method Flushing,Submerged
Distance from floor to table top 900 mm
Wire bobbin weight 8 kg
Machine dimensions (W x D x H)
(including power supply, supply tank)
2,020 X 2,310 X 1,990 mm
Machine installation space (W x D) 2,700 X 3,080 mm
Machine weight
(including power supply)
2,700 kg
Air flow 0.5MPa
30 NL/min
Total power input 3-phases 50/60Hz 11 KVA
External dimensions (W x D x H) 755 X 2,200 X 1,800 mm
Dielectric tank weight 380 kg
Dielectric tank capacity 590 liter
Dielectric fluid filtration method 2 replaceable paper filter
(internal-pressure type)
Deionizer Ion-exchange resin(18-lit.type)
Items LP2W / LN2W
Support 3D Data Q3vic for EDW (Only LP2W)
Parasolid, ACIS, SolidWorks, Solid Edge
Max. machining current 32A
Motion controller SI-Link
Finishing circuit ALPM / GALPM / NGALPM
Power requirement 3-phases 200V (50 / 60Hz) 11KVA
CNC unit 32 bit CPU
User's memory capacity 30MB
Memory device CF card (4GB), EXT memory (4GB)
Input format EXT memory (4GB)
Mouse, Keyboard, Remote controller
Display type 15.0inch LCD [XGA (1024 x 768)]
Character set Alphanumeric and symbols
Keyboard Standard 101 key base, Function key
Positioning command I ncremental and absolute
Max. input command ±99999.9999 (metric),
±9999.99999 (inch)
Machining conditions storage capacity 1,000 conditions (C000 ~ C999)
Offset setting storage capacity 1,000 conditions (H000 ~ H999)
Program sequence number assignment N000000000 to N999999999
Subprogram nesting levels 50
Q command nesting levels 7
Number of coordinates 60
Simultaneous control axes Max. 4 axes
Min. input command 0.1μm
Min. drive unit 0.1μm
Jog. feed rate Max. 3 m/min
Control system Full closed loop (Linear scales)
Drive mechanic Linear motor
Compensation Backlash and Torque compensation
(separated to each axes)
Editing 2-files simultaneous display, Background editing
Graphics XY plane, XY-YZ plane, 3D,
Background graphics
Wire tension Tension servo system
Wire feed speed Max. 25m/min (60Hz)

VZ600L

Linear Motor Drive /High Speed Wire-cut EDM

Precision parts machining for Medical, Aerospace and Cutting tools The most reliable linear motor driven Wire-cut EDM Improved surface finish supports variety of machining needs


Main Features

Five Core Technologies Developed In-House For Achieving The World's Highest Quality Machining

Starting with the development of electrical discharge circuits, Sodick has continued to make untiring efforts in the research and development of advanced EDMs. Sodick’s philosophy has been the pursuit of the highest level of accuracy, speed and versatility of machining in order to provide the highest quality products to its customers.
Sodick's: Power Supply Units, Discharge Units, Linear Motors, Motion Controllers and Fine Ceramic Components have evolved as its five core technologies. These developments have positioned Sodick at the pinnacle of EDM technologies.

NC Power Supply Unit + Discharge Unit

Sodick’s new VL wire EDM series features Sodick's latest ”LN2W series” power supply unit, which is capable of high-speed, high-precision and high-efficiency machining. The outstanding performance of the LN2W series power supply with 1Gb/sec communication technology “Perfect Active Control” making use of a modern in-house designed NC system running on Windows Operating System. The user interface benefits from a 15” colour screen for ease of use and operation.

Linear Motor

The most outstanding features of the Sodick in-house developed and manufactured Linear Motors are high-speed axis motion and quick response, which result from wear-free motion and without the need for old-fashioned ball screws. Conventional drive systems use ball screws to convert the rotational motion of the motor into the linear motion of the axis stroke, leading to the unavoidable deterioration in the response of high speed servo motors due to back-lash and mechanical lost motion. However linear motors directly provide motion to each axis without converting rotational motion of motor to linear movements.

Ceramic Components

The VL Wire EDM Series benefits from the use of ceramics in critical components such as the upper & lower guide assemblies and worktable supports. Ceramics have a low co-efficient of thermal expansion, light in weight, high in rigidity, resistant to aging and excellent electrical insulation properties, therefore an ideal material for a class leading Wire EDM Machine.


Product Specifications

Technical Specifications
Max. workpiece dimensions (W x D x H) 990 x 670 x 265(Flushing)mm
990 x 670 x 250(Submerged) mm
Max workpiece weight 850(Flushing)kg
700(Submerged kg
Work tank dimensions (W x D) 1040 x 780 mm
X axis travel 600 mm
Y axis travel 400 mm
Z axis travel 270 mm
U axis x V axis travel 80 x 80 mm
Taper angle
(At workpiece thickness of 120mm)
±15 °
Wire diameter φ0.1~φ0.3 mm
Wire feed speed (max) 420 mm/sec
Wire tension 3~23 N
Machining method Flushing,Submerged
Distance from floor to table top 930 mm
Wire bobbin weight 8 kg
Machine dimensions (W x D x H)
(including power supply, supply tank)
2,620 X 2,605 X 2,080 mm
Machine installation space (W x D) 3,300 X 3,395 mm
Machine weight
(including power supply)
3,040 kg
Air flow 0.5MPa
30 NL/min
Total power input 3-phases 50/60Hz 11 KVA
External dimensions (W x D x H) 960 X 2,430 X 1,810 mm
Dielectric tank weight 420 kg
Dielectric tank capacity 890 liter
Dielectric fluid filtration method 2 replaceable paper filter
(internal-pressure type)
Deionizer Ion-exchange resin(18-lit.type)
Items LP2W / LN2W
Support 3D Data Q3vic for EDW (Only LP2W)
Parasolid, ACIS, SolidWorks, Solid Edge
Max. machining current 32A
Motion controller SI-Link
Finishing circuit ALPM / GALPM / NGALPM
Power requirement 3-phases 200V (50 / 60Hz) 11KVA
CNC unit 32 bit CPU
User's memory capacity 30MB
Memory device CF card (4GB), EXT memory (4GB)
Input format EXT memory (4GB)
Mouse, Keyboard, Remote controller
Display type 15.0inch LCD [XGA (1024 x 768)]
Character set Alphanumeric and symbols
Keyboard Standard 101 key base, Function key
Positioning command I ncremental and absolute
Max. input command ±99999.9999 (metric),
±9999.99999 (inch)
Machining conditions storage capacity 1,000 conditions (C000 ~ C999)
Offset setting storage capacity 1,000 conditions (H000 ~ H999)
Program sequence number assignment N000000000 to N999999999
Subprogram nesting levels 50
Q command nesting levels 7
Number of coordinates 60
Simultaneous control axes Max. 4 axes
Min. input command 0.1μm
Min. drive unit 0.1μm
Jog. feed rate Max. 3 m/min
Control system Full closed loop (Linear scales)
Drive mechanic Linear motor
Compensation Backlash and Torque compensation
(separated to each axes)
Editing 2-files simultaneous display, Background editing
Graphics XY plane, XY-YZ plane, 3D,
Background graphics
Wire tension Tension servo system
Wire feed speed Max. 25m/min (60Hz)

AQ750L Premium

Linear Motor Drive Large-Capacity /High Speed Wire-Cut EDM

Direct-drive system, new power supply unit, wire feeder, automatic wire threader, and L-Cut Wire Chopper enables continuous automatic machine operation



Main Features

Direct-drive & Integrated structure

Sodick's direct-drive system uses linear motors and linear scales, and its excellent positioning accuracy never diminishes over time. The machine also employs a unique integrated structure design, offering the world's best-in-class installation space and machining area size.

Equipped with LP power supply

Significant improvement in operability by employing newly designed, operator-friendly keyboard and remote control. In addition, “Intelligent Q3vic EDW” comes standard, allowing operators to directly send 3D models into the NC unit for practical operation on the work floor.

Ultra-high speed AWT

The Super Jet AWT (Ultra-high speed Automatic Wire Threader unit) uses the conventional pipe-jet method combined with wire annealing function, greatly expanding the range of wire connection modes to choose from and meets the needs of various applications.


Product Specifications

Technical Specifications
Work tank inner dimensions (W x D) 1264 x 973 mm
X axis stroke 750 mm
Y axis stroke 500 mm
Z axis stroke 400 mm
U x V axis stroke 770 x 520 mm
Max. taper angle   Standard
    Optional
±30° (thickness: 150 mm) * 1
±45° (thickness: 150 mm)
Max. workpiece size (W x D x H) 1050 x 750 x 400 mm
Max. workpiece weight 1500kg
Wire diameter range φ0.15-φ0.33 mm * 2
Wire tension 3-23 N
Wire feed rate Max. 420 mm/sec
Distance from floor to table top 1000 mm
Machine tool dimensions (W x D x H) 2100 x 2800 x 2350 mm
Machine installation space (W x D) 3200 x 4100 mm
Machine tool weight 5300 kg
(includes power supply and dielectric tank)
Total power input 3-phase 50/60 Hz 15 kVA
Capacity 1265 liter
Filteration method Replaceable paper filter
Deionizer Ion-exchange resin (18 liter)
Max. machining current 60 A
Power requirement 200 V 50/60 Hz
NC unit Multi-tasking OS, Si-LINK
(Perfect active control)
User memory capacity Editing: 100,000 blocks、
Saving: 30 MB
Memory device CF card, external memory
Input format External memory, touch panel,
keyboard, mouse, LAN
Display type 15 inch TFT-LCD
Character set Alphanumeric and symbols
Keyboard Standard 101-key, function keys
Positioning command Incremental and absolute
Max. input command ±999999.999/±99999.9999
/±9999.99999 (switchable)
Machining conditions storage capacity 1000 conditions (C000 to C999)
Offset settings storage capacity 1000 conditions (H000 to H999)
Program sequence number assignment N000000000 to N999999999
Number of coordinates 60
Simultaneous control axes Max. 4 axes (LP20WH: 6/8 axes)
Min. input command 0.001 µm
Min. drive unit 0.01 µm
Max. feed rate X, Y axis: max. 3 m/min, Z axis: 2 m/min
Position detection Combination of full-closed
(linear scale) and semi-closed loop control
Drive mechanism Combination of linear and rotary motor
Compensations Pitch error compensation, plane pitch
error compensation, torque
compensation for each axis
Graphics XY, YZ, ZX plane, graphics drawing
during machining, background graphics drawing
*1 Only the jet nozzle needs to be replaced.
*2 Maximum wire diameter for AWT (Automatic Wire Threader) is φ0.3 mm
Please consult with your local sales representative for more details.

AQ900L Premium

Linear Motor Drive Large-Capacity /High Speed Wire-Cut EDM

Direct-drive system, new power supply unit, wire feeder, automatic wire threader, and L-Cut Wire Chopper enables continuous automatic machine operation



Main Features

Direct-drive & Integrated structure

Sodick's direct-drive system uses linear motors and linear scales, and its excellent positioning accuracy never diminishes over time. The machine also employs a unique integrated structure design, offering the world's best-in-class installation space and machining area size.

Equipped with LP power supply

Significant improvement in operability by employing newly designed, operator-friendly keyboard and remote control. In addition, “Intelligent Q3vic EDW” comes standard, allowing operators to directly send 3D models into the NC unit for practical operation on the work floor.

Ultra-high speed AWT

The Super Jet AWT (Ultra-high speed Automatic Wire Threader unit) uses the conventional pipe-jet method combined with wire annealing function, greatly expanding the range of wire connection modes to choose from and meets the needs of various applications.


Product Specifications

Technical Specifications
Work tank inner dimensions (W x D) 1374 x 1133 mm
X axis stroke 900 mm
Y axis stroke 600 mm
Z axis stroke 400 mm
U x V axis stroke 920 x 620 mm
Max. taper angle   Standard
    Optional
±30° (thickness: 150 mm) * 1
±45° (thickness: 150 mm)
Max. workpiece size (W x D x H) 1200 x 900 x 400 mm
Max. workpiece weight 2000kg
Wire diameter range φ0.15-φ0.33 mm * 2
Wire tension 3-23 N
Wire feed rate Max. 420 mm/sec
Distance from floor to table top 1050 mm
Machine tool dimensions (W x D x H) 2380 x 3150 x 2395 mm
Machine installation space (W x D) 3500 x 4200 mm
Machine tool weight 8000 kg
(includes power supply and dielectric tank)
Total power input 3-phase 50/60 Hz 15 kVA
Capacity 1600 liter
Filteration method Replaceable paper filter
Deionizer Ion-exchange resin (18 liter)
Max. machining current 60 A
Power requirement 200 V 50/60 Hz
NC unit Multi-tasking OS, Si-LINK
(Perfect active control)
User memory capacity Editing: 100,000 blocks、
Saving: 30 MB
Memory device CF card, external memory
Input format External memory, touch panel,
keyboard, mouse, LAN
Display type 15 inch TFT-LCD
Character set Alphanumeric and symbols
Keyboard Standard 101-key, function keys
Positioning command Incremental and absolute
Max. input command ±999999.999/±99999.9999
/±9999.99999 (switchable)
Machining conditions storage capacity 1000 conditions (C000 to C999)
Offset settings storage capacity 1000 conditions (H000 to H999)
Program sequence number assignment N000000000 to N999999999
Number of coordinates 60
Simultaneous control axes Max. 4 axes (LP20WH: 6/8 axes)
Min. input command 0.001 µm
Min. drive unit 0.01 µm
Max. feed rate X, Y axis: max. 3 m/min, Z axis: 2 m/min
Position detection Combination of full-closed
(linear scale) and semi-closed loop control
Drive mechanism Combination of linear and rotary motor
Compensations Pitch error compensation, plane pitch
error compensation, torque
compensation for each axis
Graphics XY, YZ, ZX plane, graphics drawing
during machining, background graphics drawing
*1 Only the jet nozzle needs to be replaced.
*2 Maximum wire diameter for AWT (Automatic Wire Threader) is φ0.3 mm
Please consult with your local sales representative for more details.

AQ1200L

Linear Motor Drive Large-Capacity /High Speed Wire-Cut EDM

Direct-drive system, new power supply unit, wire feeder, automatic wire threader, and L-Cut Wire Chopper enables continuous automatic machine operation



Main Features

Direct-drive & Integrated structure

Sodick's direct-drive system uses linear motors and linear scales, and its excellent positioning accuracy never diminishes over time. The machine also employs a unique integrated structure design, offering the world's best-in-class installation space and machining area size.

Equipped with LP power supply

Significant improvement in operability by employing newly designed, operator-friendly keyboard and remote control. In addition, “Intelligent Q3vic EDW” comes standard, allowing operators to directly send 3D models into the NC unit for practical operation on the work floor.

Ultra-high speed AWT

The Super Jet AWT (Ultra-high speed Automatic Wire Threader unit) uses the conventional pipe-jet method combined with wire annealing function, greatly expanding the range of wire connection modes to choose from and meets the needs of various applications.


Product Specifications

Technical Specifications
Work tank inner dimensions (W x D) 1824 x 1400 mm
X axis stroke 1200 mm
Y axis stroke 800 mm
Z axis stroke 400 mm
U x V axis stroke 1220 x 820 mm
Max. taper angle   Standard
    Optional
±30° (thickness: 150 mm) * 1
±45° (thickness: 150 mm)
Max. workpiece size (W x D x H) 1600 x 1200 x 400 mm
Max. workpiece weight 4000kg
Wire diameter range φ0.15-φ0.33 mm * 2
Wire tension 3-23 N
Wire feed rate Max. 420 mm/sec
Distance from floor to table top 1200 mm
Machine tool dimensions (W x D x H) 4100 x 3870 x 2490 mm
Machine installation space (W x D) 5200 x 5200 mm
Machine tool weight 11000 kg
(includes power supply and dielectric tank)
Total power input 3-phase 50/60 Hz 15 kVA
Capacity 3000 liter
Filteration method Replaceable paper filter
Deionizer Ion-exchange resin (18 liter)
Max. machining current 60 A
Power requirement 200 V 50/60 Hz
NC unit Multi-tasking OS, Si-LINK
(Perfect active control)
User memory capacity Editing: 100,000 blocks、
Saving: 30 MB
Memory device CF card, external memory
Input format External memory, touch panel,
keyboard, mouse, LAN
Display type 15 inch TFT-LCD
Character set Alphanumeric and symbols
Keyboard Standard 101-key, function keys
Positioning command Incremental and absolute
Max. input command ±999999.999/±99999.9999
/±9999.99999 (switchable)
Machining conditions storage capacity 1000 conditions (C000 to C999)
Offset settings storage capacity 1000 conditions (H000 to H999)
Program sequence number assignment N000000000 to N999999999
Number of coordinates 60
Simultaneous control axes Max. 4 axes (LP20WH: 6/8 axes)
Min. input command 0.001 µm
Min. drive unit 0.01 µm
Max. feed rate X, Y axis: max. 3 m/min, Z axis: 2 m/min
Position detection Combination of full-closed
(linear scale) and semi-closed loop control
Drive mechanism Combination of linear and rotary motor
Compensations Pitch error compensation, plane pitch
error compensation, torque
compensation for each axis
Graphics XY, YZ, ZX plane, graphics drawing
during machining, background graphics drawing
*1 Only the jet nozzle needs to be replaced.
*2 Maximum wire diameter for AWT (Automatic Wire Threader) is φ0.3 mm
Please consult with your local sales representative for more details.

AQ1500L

Linear Motor Drive Large-Capacity /High Speed Wire-Cut EDM

Direct-drive system, new power supply unit, wire feeder, automatic wire threader, and L-Cut Wire Chopper enables continuous automatic machine operation



Main Features

Direct-drive & Integrated structure

Sodick's direct-drive system uses linear motors and linear scales, and its excellent positioning accuracy never diminishes over time. The machine also employs a unique integrated structure design, offering the world's best-in-class installation space and machining area size.

Equipped with LP power supply

Significant improvement in operability by employing newly designed, operator-friendly keyboard and remote control. In addition, “Intelligent Q3vic EDW” comes standard, allowing operators to directly send 3D models into the NC unit for practical operation on the work floor.

Ultra-high speed AWT

The Super Jet AWT (Ultra-high speed Automatic Wire Threader unit) uses the conventional pipe-jet method combined with wire annealing function, greatly expanding the range of wire connection modes to choose from and meets the needs of various applications.


Product Specifications

Technical Specifications
Work tank inner dimensions (W x D) 2124 x 1600 mm
X axis stroke 1500 mm
Y axis stroke 1000 mm
Z axis stroke 600 mm
U x V axis stroke 1520 x 1020 mm
Max. taper angle   Standard
    Optional
±30° (thickness: 150 mm) * 1
±45° (thickness: 150 mm)
Max. workpiece size (W x D x H) 1900 x 950 x 600 mm
Max. workpiece weight 8000kg
Wire diameter range φ0.15-φ0.33 mm * 2
Wire tension 3-23 N
Wire feed rate Max. 420 mm/sec
Distance from floor to table top 1200 mm
Machine tool dimensions (W x D x H) 5600 x 4435 x 2930 mm
Machine installation space (W x D) 6700 x 5765 mm
Machine tool weight 15000 kg
(includes power supply and dielectric tank)
Total power input 3-phase 50/60 Hz 15 kVA
Capacity 3000 liter
Filteration method Replaceable paper filter
Deionizer Ion-exchange resin (18 liter)
Max. machining current 60 A
Power requirement 200 V 50/60 Hz
NC unit Multi-tasking OS, Si-LINK
(Perfect active control)
User memory capacity Editing: 100,000 blocks、
Saving: 30 MB
Memory device CF card, external memory
Input format External memory, touch panel,
keyboard, mouse, LAN
Display type 15 inch TFT-LCD
Character set Alphanumeric and symbols
Keyboard Standard 101-key, function keys
Positioning command Incremental and absolute
Max. input command ±999999.999/±99999.9999
/±9999.99999 (switchable)
Machining conditions storage capacity 1000 conditions (C000 to C999)
Offset settings storage capacity 1000 conditions (H000 to H999)
Program sequence number assignment N000000000 to N999999999
Number of coordinates 60
Simultaneous control axes Max. 4 axes (LP20WH: 6/8 axes)
Min. input command 0.001 µm
Min. drive unit 0.01 µm
Max. feed rate X, Y axis: max. 3 m/min, Z axis: 2 m/min
Position detection Combination of full-closed
(linear scale) and semi-closed loop control
Drive mechanism Combination of linear and rotary motor
Compensations Pitch error compensation, plane pitch
error compensation, torque
compensation for each axis
Graphics XY, YZ, ZX plane, graphics drawing
during machining, background graphics drawing
*1 Only the jet nozzle needs to be replaced.
*2 Maximum wire diameter for AWT (Automatic Wire Threader) is φ0.3 mm
Please consult with your local sales representative for more details.

AP250L (Oil)

Linear Motor Drive /Precision Wire-cut EDM

Improved productivity in the superfine and super-precision screw-less drive and new power supply unit



Main Features

Screw-less drive + gantry type construction

This machine uses a linear motor drive which realizes high speed and fast response and also a low center of gravity gantry-type column, enabling the mechanical displacement due to mass motion to be reduced to the minimum possible, and also realizing greatly improved positioning and machining accuracy.

Newly developed power supply unit

The new power supply unit employs 5th generation EDM "Perfect Active Control" technology. It also uses 1 Gbit/sec serial communication technology, realizing high-speed processing of discharge control and motion control simultaneously.

Improved workability and operability

This machine comes with a three-sided automated vertical sliding machining tank, a U-shaped work stand, and other parts, resulting in greatly improved workability during setup process. In addition, the operation panel is separate from the machine, which enables all work to be performed from the front of the machine.


Product Specifications

Technical Specifications
X axis travel 250 mm
Y axis travel 150 mm
Z axis travel 120 mm
U x V axis travel 35 x 35 mm
Max. taper angle ± 7° (Thickness: 100 mm)
Max. workpiece size (W x D x H) 400 x 270 x 100 mm
Max. weight of workpiece 80 kg
Wire diameter φ0.03 - φ0.2 mm (Optional : φ0.03 mm)
Wire tension 3 - 18 N
Wire feed speed Max. 250 mm/sec
Distance from floor to table top 1080 mm
Machine tool dimensions (W x D x H) 1860 x 2515 x 2105 mm
(includes a power supply and service tank)
Machine tool weight 3730 kg
(includes a power supply and service tank)
Total power input 3-phase 50/60 Hz 10 kVA
Machine tool dimensions (W x D x H) 1050 x 1310 x 1600 mm
Machining fluid Electric Discharge Machining Oil
(4th class 3rd petroleum class)
Capacity 375 liter
Method of filtering machining fluid Replaceable paper filter
Max. machining current 40 A
Power requirement AC 200V 50/60 H z
NC unit Multi-tasking OS,
K-SMC-LINK method (M4-LINK)
User memory capacity Editing: 100,000 blocks
Saving: 30MB
Memory device SSD, external memory
Input format External memory, touch panel,
keyboard, LAN
Display type 19 inch TFT-LCD
Character set Alphanumeric and symbols
Keyboard Standard Software 101-key,
function key
Positioning command Incremental and absolute
Max. input command ±999999.999/±99999.9999/
±9999.99999 (switchable)
Machining conditions storage capacity 10000 conditions (C0000 to C9999)
Offset settings storage capacity 10000 conditions (H0000 to H9999)
Program sequence number assignment N000000000 to N999999999
Number of coordinates 60
Simultaneous control axes Max. 4 axes (SPW-E : Max. 8 axes)
Min. command unit 0.001µm
Min. drive unit 0.01µm
Max. feed rate X, Y axis: max. 3 m/min, Z axis: 2 m/min
Position detection Full closed loop (linear scale)
Drive mechanism Linear motor (X, Y, U, V Axes)
Compensations Pitch error compensation, plane pitch
error compensation, torque compensation,
twist compensation, workpiece alignment
compensation for each axis
Graphics XY, YZ, ZX plane, graphics drawing
during machining, enlarge, shrink, rotation,
background graphics drawing
